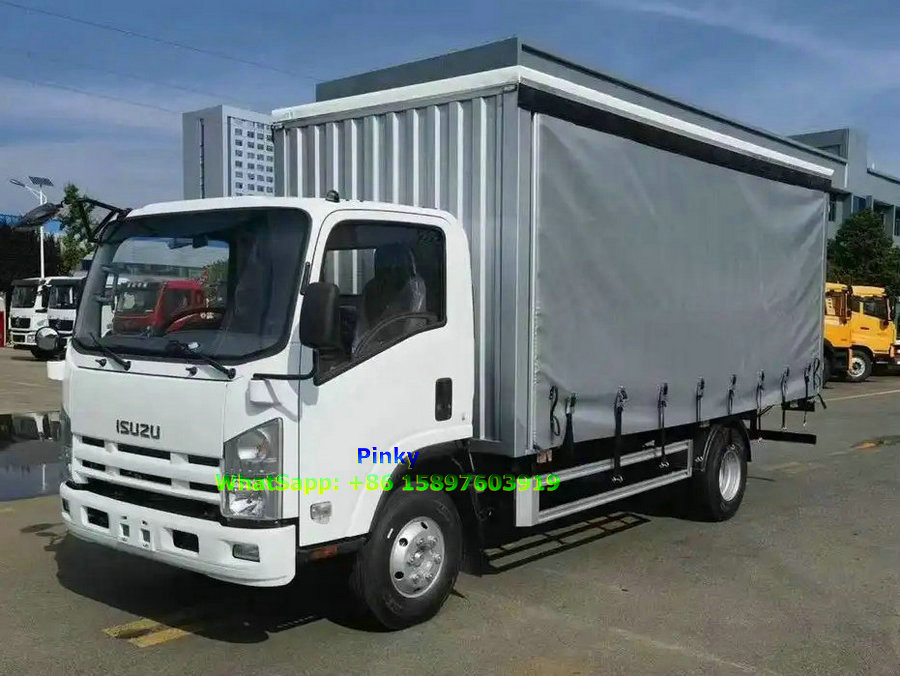

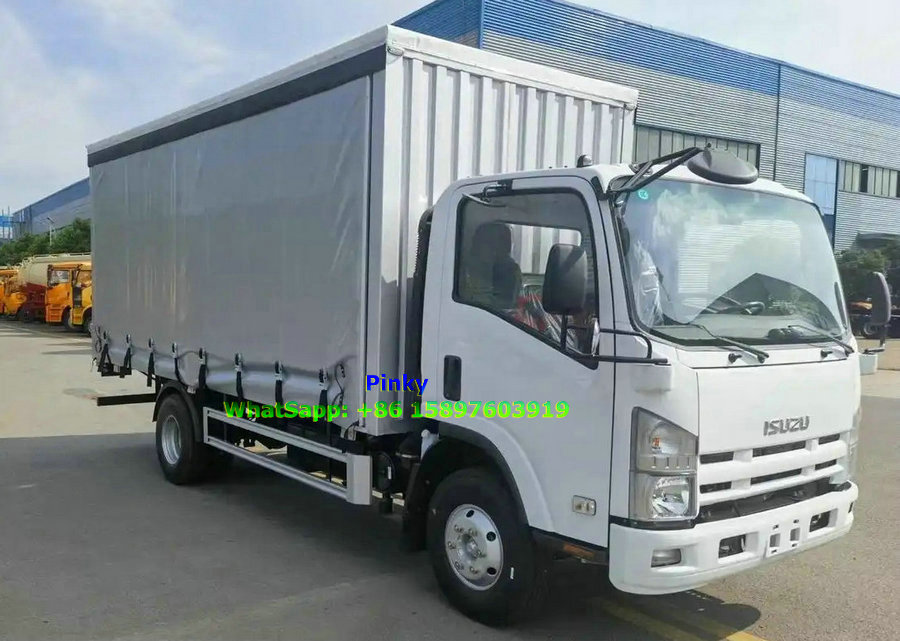

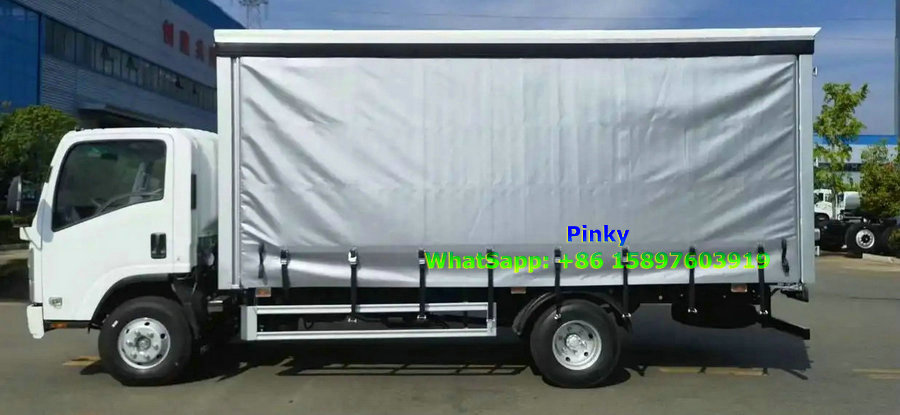

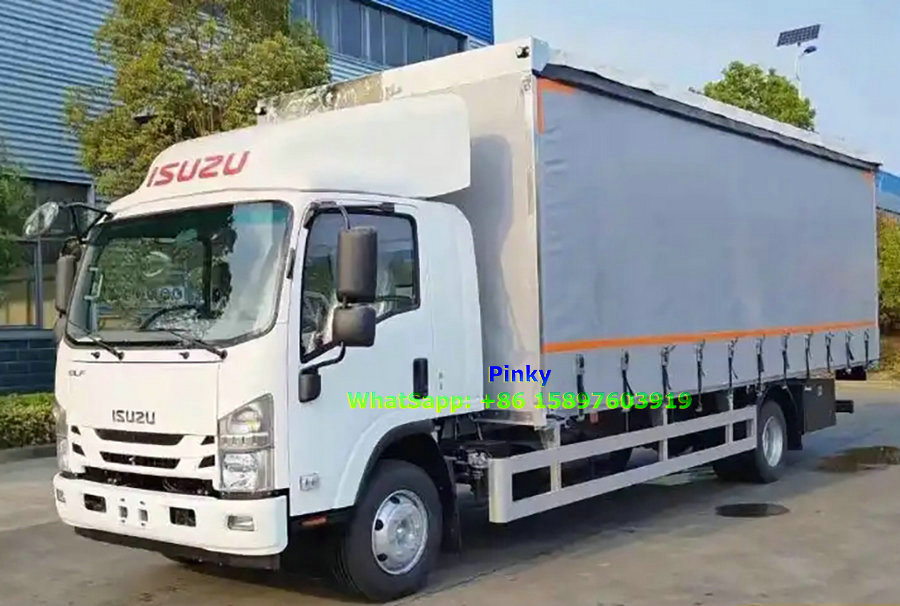

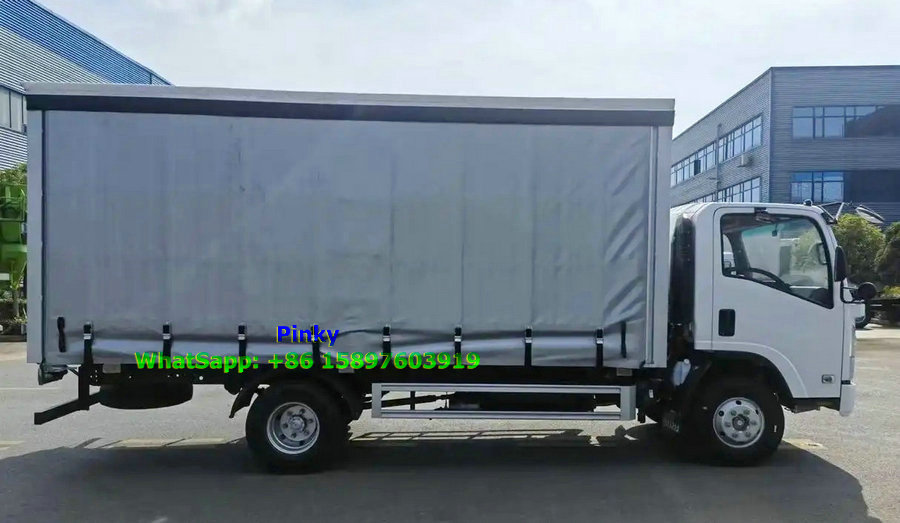

ISUZU side curtain tarpaulin truck Van Truck Customized ISUZU Truck
Through customized dimensions and modular design, Gold customers have achieved a 35% increase in multi category mixed transportation efficiency. The military grade aluminum alloy frame and intelligent sliding tarpaulin system create a lightweight and high load-bearing solution. The double coated PVC material can withstand extreme environments from -40 ℃ to 70 ℃. The four step anti-corrosion process ensures compliant operation in 38 countries worldwide, reducing weight by 15% and saving 12% fuel consumption.
Export type
Isuzu side curtain tarpaulin truck: an innovative model of modular transportation
Against the backdrop of increasing demands for cargo protection and operational flexibility in cross-border logistics, the export-oriented Isuzu side curtain tarpaulin truck * * redefines the tarpaulin truck category standards with innovative modular design, military grade material technology, and intelligent protection system, providing global customers with a full scenario adapted transportation solution
1.
Full dimensional customized cargo compartment system. Flexible Space Management System
Free customization of size: Supports full size customization of length 5-12 meters, width 2.3-2.6 meters, height 2.5-3.8 meters, suitable for mainstream chassis platforms worldwide
High strength lightweight structure : The front/side panels are made of 500mm high aluminum alloy frame (T6 heat treatment process), which weighs only 40% of the steel structure and has a bending strength of 280MPa, 25mm plywood base : Made of Finnish birch plywood, certified EN314-2 (Class II), with a load-bearing capacity of 8 tons/㎡
2、 Intelligent sunshade protection system
1. Double coating tarpaulin technology
Grey PVC coated side curtain: Adopting German Klaus Maffei 280g/㎡ double-sided coating technology, with UV resistance level 8 (ASTM G173) and temperature resistance range of -40 ℃~+70 ℃
White translucent canopy * *: The top is made of 180g/㎡ white PVC coating material, with a light transmittance of 15%, reducing the temperature inside the car by 3-5 ℃ and saving cooling energy consumption
Sliding tarpaulin system * *: The side curtains and canopy are designed to slide independently, supporting single-sided/double-sided opening, and the opening speed is increased to 1.2m/s
3、 Innovative framework structure design
1. Modular assembly system
High strength bolt connection: The frame adopts 8.8 grade high-strength bolts (GB/T 3098.1), with an assembly accuracy of ± 1mm, and supports quick disassembly and maintenance
Embedded wooden pole groove: The side panel is reserved with a 30mm × 50mm wooden pole installation groove, with a spacing of 300mm, suitable for European standard cargo fixing methods
Anti rollover stable structure: Passed ISO 23271 rollover test (35 ° static rollover without deformation)
4、 Security protection configuration

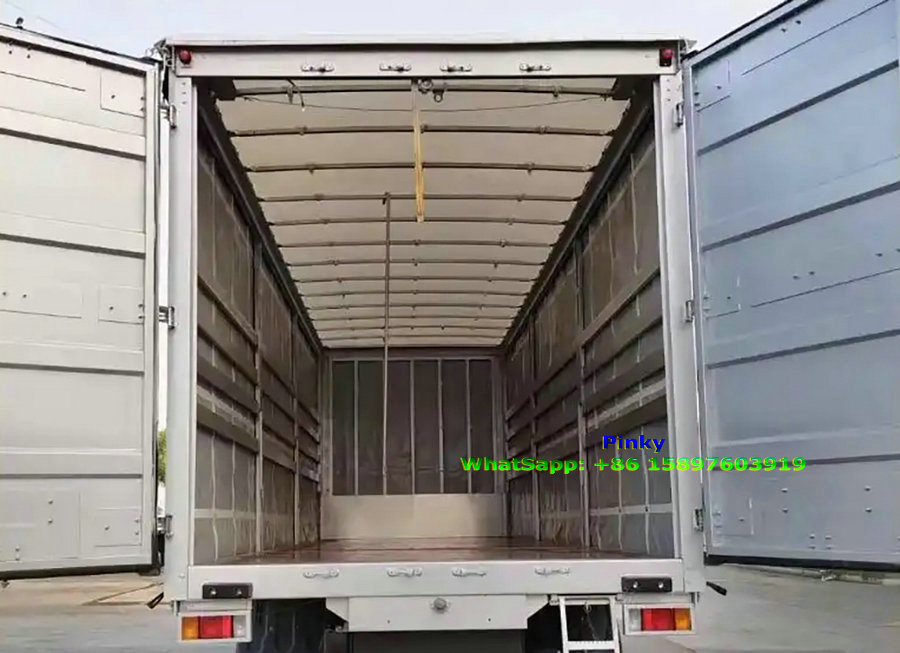

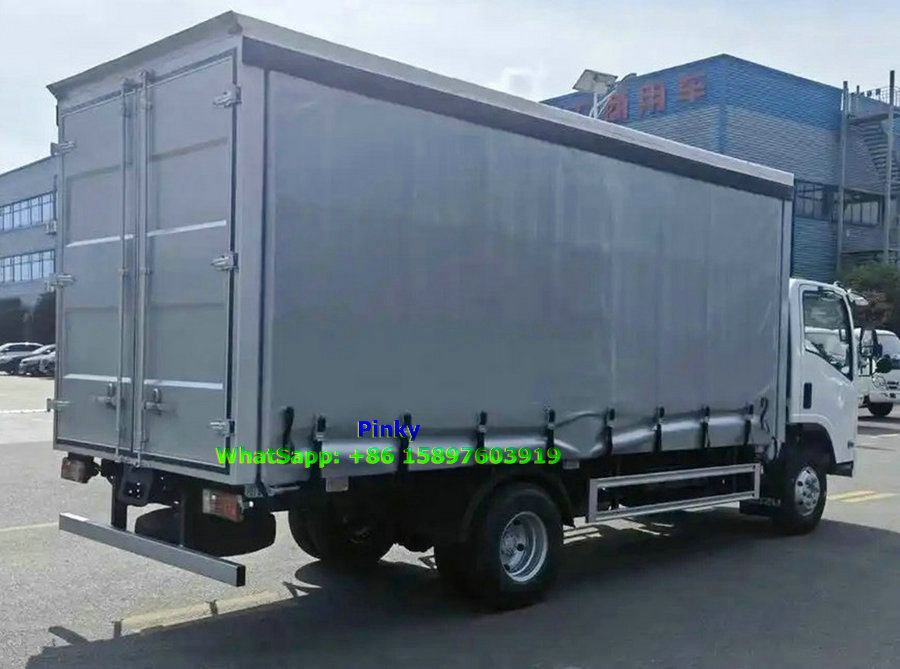

1. Rear dual door system
Carbon steel+stainless steel combination * *: The door panel is made of 2mm cold-rolled carbon steel, and the frame/hinge is made of 304 stainless steel (ASTM A240). There is no corrosion after 1000 hours of salt spray testing
Triple sealing design: The door frame is equipped with EPDM sealing strips, with a waterproof rating of IP67, and has passed the ISO 16900 leak proof test
Emergency escape device: equipped with manual unlocking pull rope inside, in compliance with the requirements of UN ECE R11 regulations
5、 Military grade coating process
1. Four step anti-corrosion system
1. Phosphating treatment: Zinc based phosphating process is used (film weight 2.0-4.5g/㎡)
2. Cathodic electrophoresis : Film thickness 18-22 μ m, salt spray test>1000 hours
3. Intermediate primer: thickness 40-60 μ m, providing secondary anti-corrosion protection
4. Topcoat process : PPG two-component polyurethane topcoat is selected, with a glossiness of ≥ 85 °
6、 Technical parameters
|Project | Specifications|
|---------------------|-------------------------------|
|Chassis model | Isuzu FVR/FTR series|
|Drive form | 4 × 2/6 × 4 all wheel drive|
|Maximum load capacity | 18-32 tons|
|Tarpaulin Material | Side Curtain: Grey PVC (280g/㎡)|
|Top canopy: white PVC (180g/㎡)|
|Frame material | 6061-T6 aluminum alloy|
|Waterproof rating | IP67|
|Compliance certification | ISO 9001/14001, CE, ADR|
ISUZU side curtain tarpaulin truck ,Through customized dimensions and modular design, our Glob clients have achieved mixed loading of multiple categories of goods, resulting in a 35% increase in transportation efficiency
Core advantages
✅ ** Global adaptability * *: compliant with road transport regulations in 38 countries including the European Union, North America, Southeast Asia, etc
✅ ** Full scene protection * *: quadruple protection against UV rays, rain and snow, corrosion, and static electricity
✅ ** Operating economy * *: reduced weight by 15%, fuel consumption by 12%, and maintenance costs by 20%
More the configuration and price of this export-oriented Isuzu side curtain tarpaulin truck, please contact with Pinky +86 15897603919
