LPG tanker trailer is the core specialized transportation equipment for liquefied petroleum gas storage and long-distance road transportation. Widely applied in urban gas distribution, cross-border bulk LPG trade, gas station supply and petrochemical logistics. Our high-standard LPG semi-trailers are manufactured strictly following international pressure vessel standards, customized for tropical high-temperature Africa, cold plateau Mongolia, Southeast Asian humid regions and other global markets. This blog fully introduces core parameters, production technology, competitive strengths and mainstream export destinations of our LPG tanker trailers.

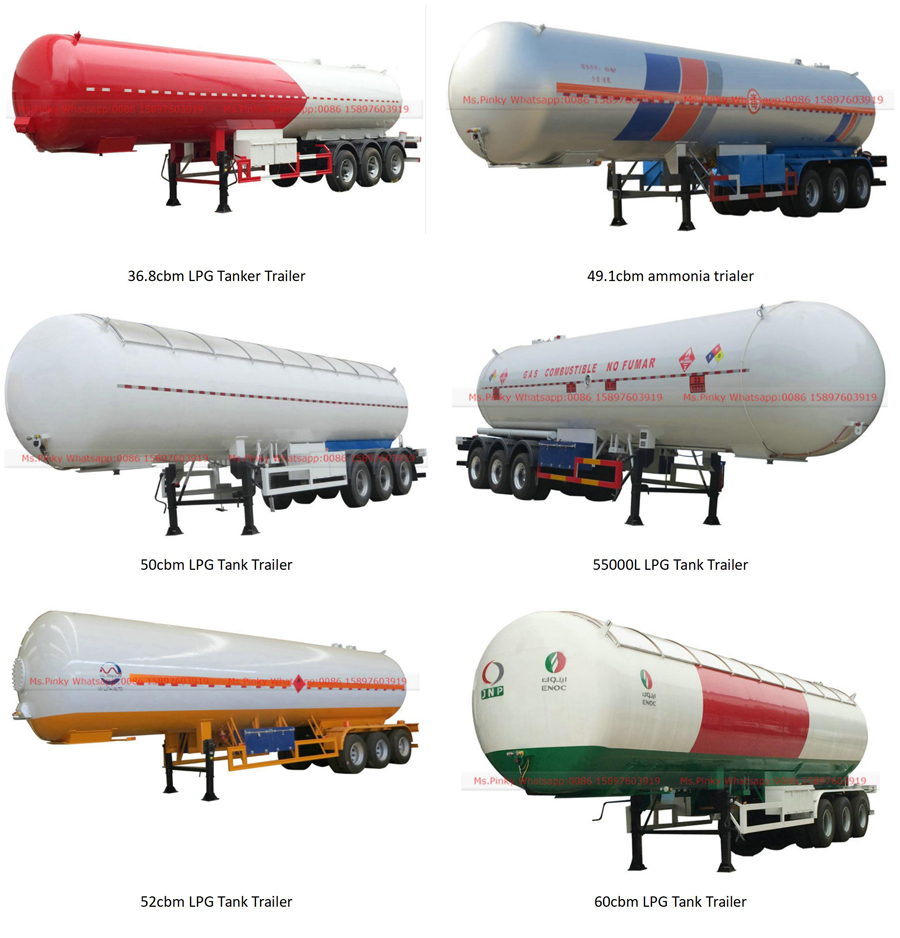

1. Standard Volume Options of LPG Tanker Trailer
We provide full-range customizable tank volumes to match different road transport regulations and logistics demands worldwide:
- Small capacity: 20CBM ~ 30CBM
Ideal for intra-city last-mile LPG distribution, narrow urban roads and short-distance regional delivery, highly flexible for daily retail gas supply.
- Medium mainstream capacity: 35CBM ~ 50CBM
The most popular model for cross-provincial and border cross-country transportation, balancing payload efficiency and road legal weight limits, the best-selling specification for African and Southeast Asian clients.
- Large heavy-duty capacity: 55CBM ~ 65CBM
Designed for long-distance trunk bulk LPG transportation, dedicated to large energy companies, LPG import terminals and gas depots, maximizing transport cost efficiency.
All volumes can be adjusted non-standardly according to local axle load laws, vehicle height and width restrictions of target countries.
2. Premium Tank Body Material Selection
Material quality directly decides safety, service life and low-temperature resistance of pressure vessels:
- Main Standard Material: Q345R / 16MnDR Pressure Vessel Steel
Domestic mainstream certified boiler and pressure vessel steel, featuring outstanding compressive resistance, impact toughness and stable performance under normal working temperature (-20℃ ~ +60℃). It meets ISO, ASME and CE pressure vessel standards, perfectly suitable for most tropical and subtropical regions such as Nigeria, Malawi, Ghana and Southeast Asia.
- Low-Temperature Custom Material: 09MnNiDR Low-Temperature Steel
Specially customized for frigid markets like Mongolia, Russia and Central Asia. It maintains excellent mechanical toughness under ultra-low temperature of -40℃, effectively preventing brittle cracking of tank bodies in severe cold winter, the exclusive choice for our clients including GORGAS LLC Mongolia.
- Internal Anti-Corrosion Treatment
The inner wall adopts advanced sandblasting + epoxy anti-corrosion coating process, resisting corrosion from LPG medium impurities, extending tank service life to 8–12 years under regular maintenance. The external surface uses weather-resistant polyurethane paint, anti-rust, UV-proof and adaptable to rainy, coastal and dusty environments.

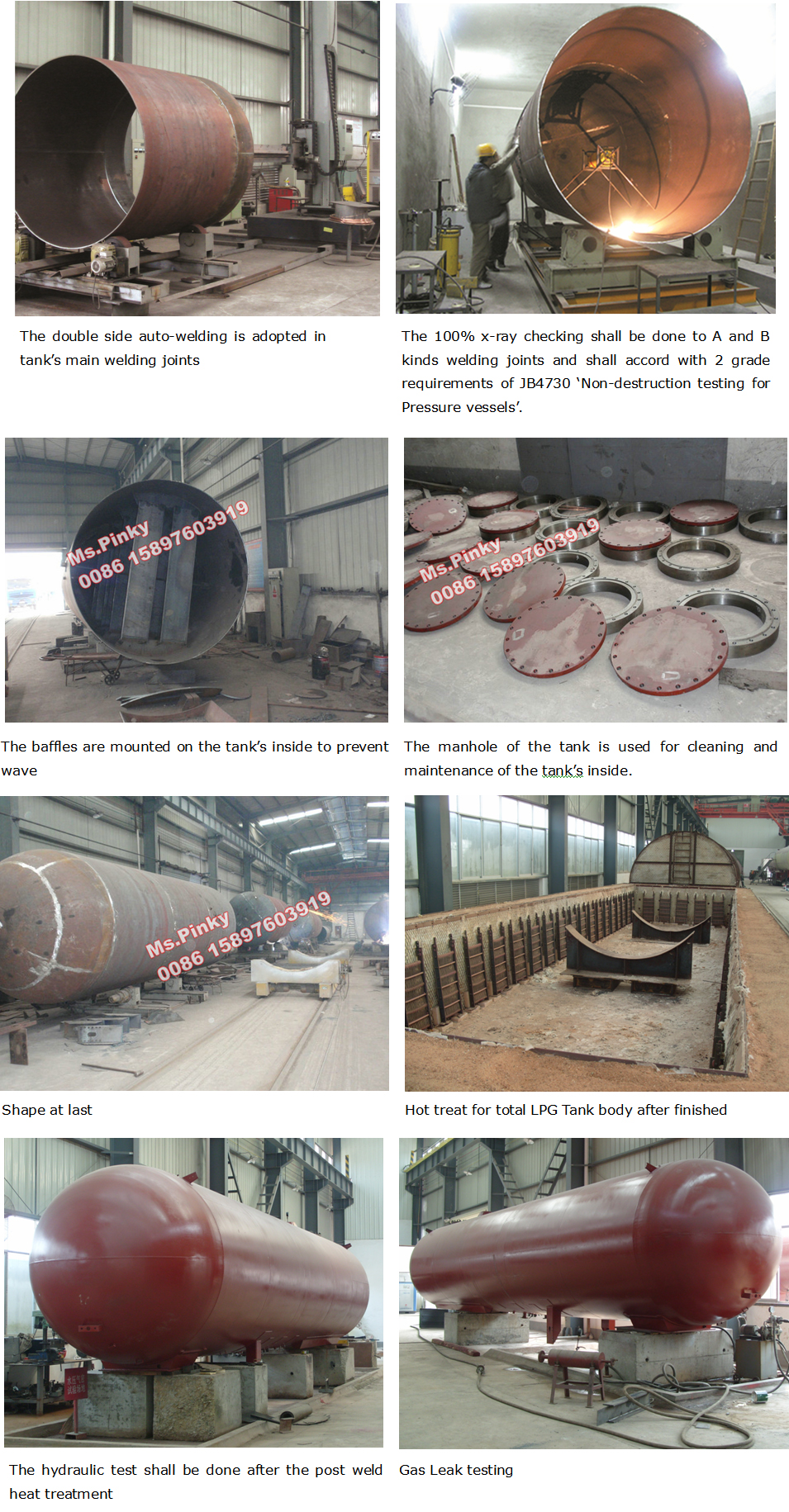

3. Professional Manufacturing & Processing Craftsmanship
Every production procedure complies with national GB150 pressure vessel codes and international transport tank standards:
- Automatic Whole-Plate Rolling Forming
Adopt large numerical control rolling machine for one-time integral tank cylinder forming, no secondary splicing of small steel plates. The tank wall thickness is uniform with stable structural stress, avoiding hidden dangers of local stress concentration.
- Full Penetration Automatic Welding & 100% NDT Inspection
All longitudinal and circumferential welds use submerged arc automatic welding. Every welding seam completes strict non-destructive testing (X-ray radiographic testing + ultrasonic flaw detection). Weld pass rate reaches 100%, to guarantee airtightness and pressure bearing safety under full load.
- Hydrostatic Pressure Burst Test
Each finished tank undergoes a 1.5 times rated working pressure hydraulic test before assembly, strictly eliminating leakage risks.
- Complete Matching of Safety Hydraulic Systems
Equipped with professional low-temperature resistant hydraulic emergency cut-off valve, unloading hydraulic control system and overflow protection devices. The matched hydraulic control components are supplied by supporting professional manufacturers, ensuring stable operation of loading and unloading systems under complex working conditions.
- Chassis & Accessories Standard Configuration
Match famous brand axles, air suspension, ABS anti-lock braking system, explosion-proof tires and full set of LPG safety accessories (safety valve, pressure gauge, liquid level meter, flame arrester) to fully meet global road safety regulations.
4. Core Product Advantages
4.1 Superior Safety Performance
Full pressure vessel certification production, complete safety protection chain including overpressure protection, emergency cut-off, anti-static design, fully compliant with dangerous goods transport regulations of various countries, zero leakage risk during LPG transportation.
4.2 Strong Climate Adaptability
Two major material solutions for hot and cold climates: tropical anti-high temperature version for Africa; ultra-low temperature resistant version for Mongolia, Russia and cold northern regions, stable operation in extreme weather all year round.
4.3 Cost-Effective Total Solution
We provide complete tanker trailer + supporting hydraulic control parts one-stop supply service, saving customers separate procurement time and cost for vehicle body and core components. Compared with European and American brands, our products have obvious price advantages with equivalent quality standards.
4.4 Customized Localized Design
We adjust tank size, axle number, color, logo, voltage and accessory configuration according to local traffic laws, certification requirements and corporate branding needs. We support SONCAP certification for Nigeria, GOST certification for Russia/Mongolia and other regional mandatory certifications.
4.5 Reliable After-Sales Support
We set up overseas spare parts warehouses at China-Mongolia border Erlianhot, and major ports of West Africa. Fast spare parts supply, long-term technical guidance, and professional after-sales maintenance service for global customers.
5. Main Target Export Countries & Classic Cooperative Clients
Our LPG tanker trailers have been exported to more than 30 countries across Africa, Central Asia, Southeast Asia and Eastern Europe, with stable long-term cooperation with well-known local energy enterprises:
5.1 West Africa (Core Bulk Export Market)
5.2 Mongolia & Russian Far East (Cold Climate High-End Market)
Classic Client Case: GORGAS LLC (Ulaanbaatar, Mongolia). Custom 09MnNiDR low-temperature resistant LPG tank trailers for cross-border Russia-Mongolia LPG transportation, which have been running stably in Ulaanbaatar’s cold environment for years.
5.3 Southeast Asia RCEP Market
Philippines, Indonesia, Malaysia, Thailand
Light-duty small-volume tankers are popular for urban LPG last-mile delivery, adapted to local narrow road conditions.
5.4 Central Asia & Eastern Europe
Kazakhstan, Uzbekistan, Belarus
Heavy-duty large-volume tankers are widely used for cross-border energy trunk transportation, meeting strict GOST EAC certification standards.
Conclusion
Our LPG tanker trailer integrates mature pressure vessel technology, climate-adaptive material design and complete one-stop supporting hydraulic solution, which can perfectly satisfy the diversified LPG transportation demands of global energy enterprises. Whether you need urban distribution small tankers, cross-border bulk transport heavy semi-trailers, or ultra-low temperature customized cold-resistant models, we can provide professional tailored design, certification support and full-cycle export service.
Welcome to contact our team to get detailed quotations, product catalogs and case references of local projects. We look forward to establishing long-term stable LPG transportation equipment cooperation with global energy partners.
