10Wheels 350HP ISUZU GIGA FVZ Towing Truck 15Tons Loading Flatbed Wrecker 8.5Meters

Name: 10Wheels 350HP ISUZU GIGA FVZ Towing Truck 15Tons Loading Flatbed Wrecker 8.5Meters
Brand: HUBEI RUNLI SPECIAL AUTOMOBILE CO.,LTD

ISUZU GIGA 6×4 350HP 15 Ton Rollback Flatbed Wrecker Truck

Chassis: ISUZU VC61 GIGA 6x4, Engine: 6UZ1, 350HP, Euro 3/Euro 4/Euro 5/Euro 6

Flatbed capacity: 15 tons,
flat size 8500×2550mm,
equipped with 10T hydraulic winch,
double side control,
optional remote control. Ideal for heavy vehicle rescue, bus recovery and light machinery transportation.

Inquiry

Add to Quote List View Quote List

Description

10Wheels 350HP ISUZU GIGA FVZ Towing Truck 15Tons Loading Flatbed Wrecker 8.5Meters

Genuine ISUZU GIGA chassis, 6UZ1 engine durable for over 500,000km without major overhaul

15 tons heavy-duty flatbed, strong structure for heavy vehicle recovery
Complete hydraulic system, stable lifting & sliding performance
Flexible customization for different overseas market requirements
Professional export service, one-stop documentation support

This ISUZU GIGA VC61 6×4 350HP rollback flatbed wrecker truck is built for medium & heavy vehicle rescue, highway recovery and light machinery transportation. Powered by original ISUZU 6UZ1 350HP diesel engine with reliable performance and low fuel consumption, spare parts are widely available globally.

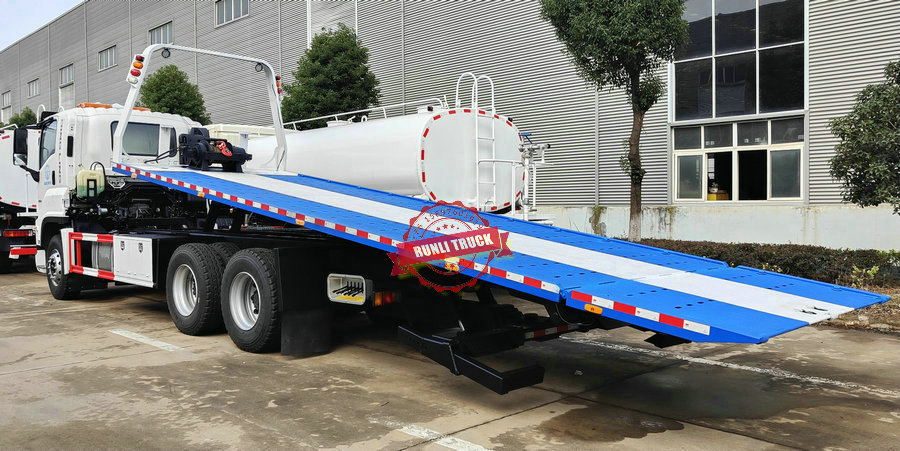

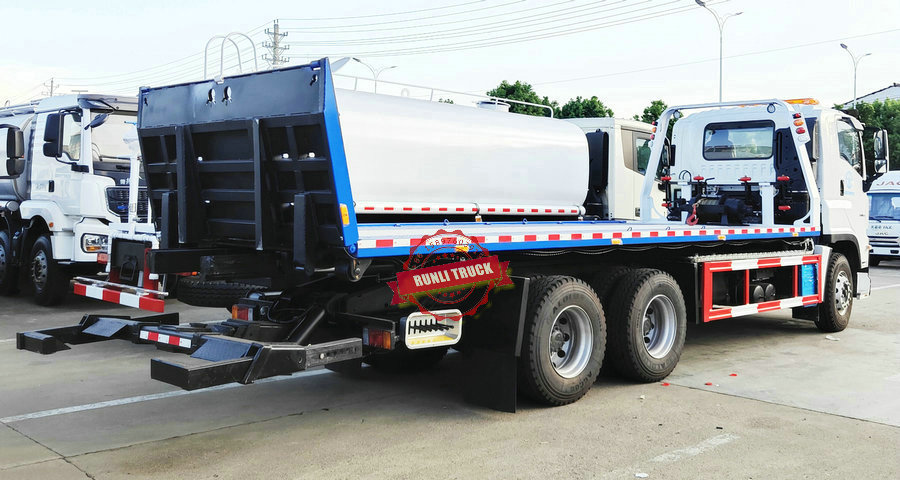

The 15-ton sliding & tilting flatbed adopts thick patterned steel plate. The whole platform can slide backward and tilt down, making loading broken-down trucks, coaches and construction machines much easier. Equipped with heavy-duty hydraulic winch, dual-side hydraulic operation system, wireless remote control optional.

6×4 rear double axle design provides excellent stability under heavy load, suitable for long-distance rescue, rugged road conditions, ports, mining area and expressway service stations. We support LHD / RHD chassis, Euro 3 /Euro 4 /Euro 5 / Euro 6 version, custom painting and full set export documents including CO certificate.

More ISUZU GIGA FTR 4X2 potable water truck,ISUZU ISUZU Cargo Truck, ISUZU Tanker Truck, ISUZU Van Truck, ISUZU Refrigerator Truck, ISUZU Garbage Truck and Other ISUZU Special Trucks,
Please contact With Pinky, Whatsapp / Wechat +86 15897603919

The Detail Specification of 10Wheels 350HP ISUZU GIGA FVZ Towing Truck 15Tons Loading Flatbed Wrecker 8.5Meters :

ISUZU GIGA FVZ VC66 Reinforced Heavy Truck Towing Truck
Install the new Isuzu VC61 level cab,Flat top, one and a half rows
Driving type	6 x 4 (left-hand drive)
Engine:	6UZ1-TCG61 350HP 6Cylidner Inline Euro 3 /Euro 4/Euro5/Euro 6
Transmission:	FAST 12JSD180TA 12F/2R By manual
Front axle	HDZ9.5
Rear Axle	13T Isuzu
Tires	Front wheel 385/65R22.5 20PR,
Tires	rear wheel 315/80R22.5 20PR
Suspension	Semi elliptical steel plate spring with hydraulic two-way action cylinder shock absorber
Fuel tank	400 liters
Wheelbase	4600+1370

Tablet size	8500 * 2450
Flat load capacity	15 tons

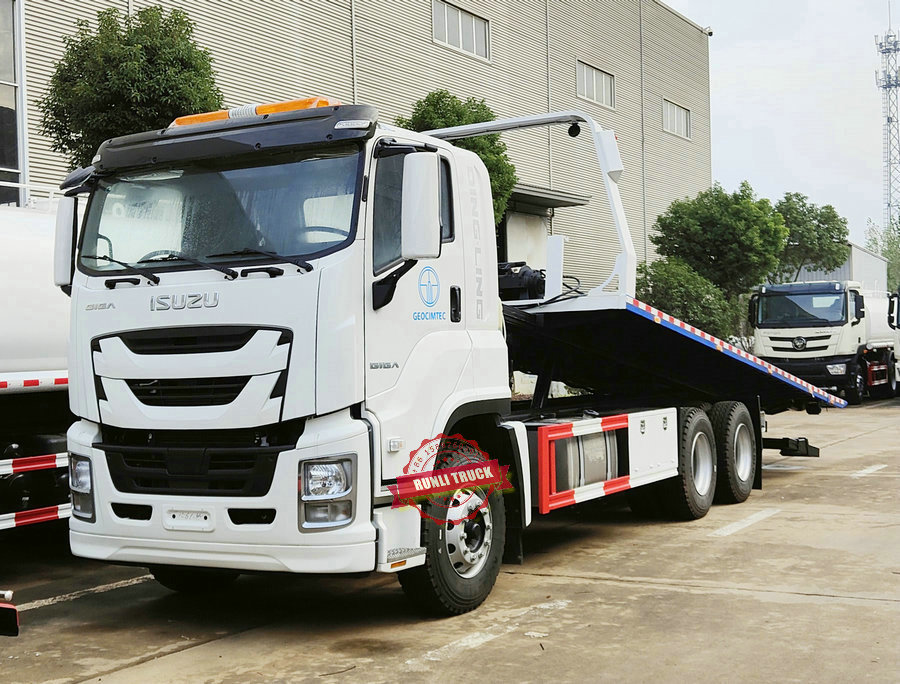

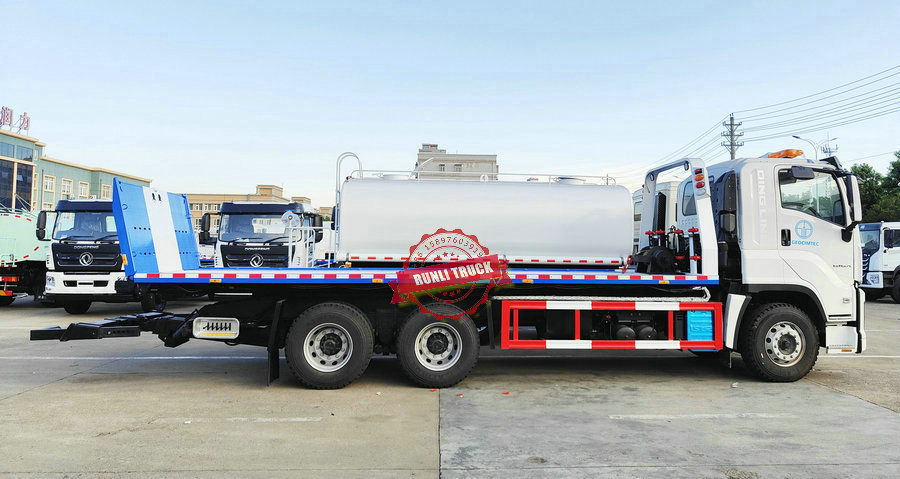

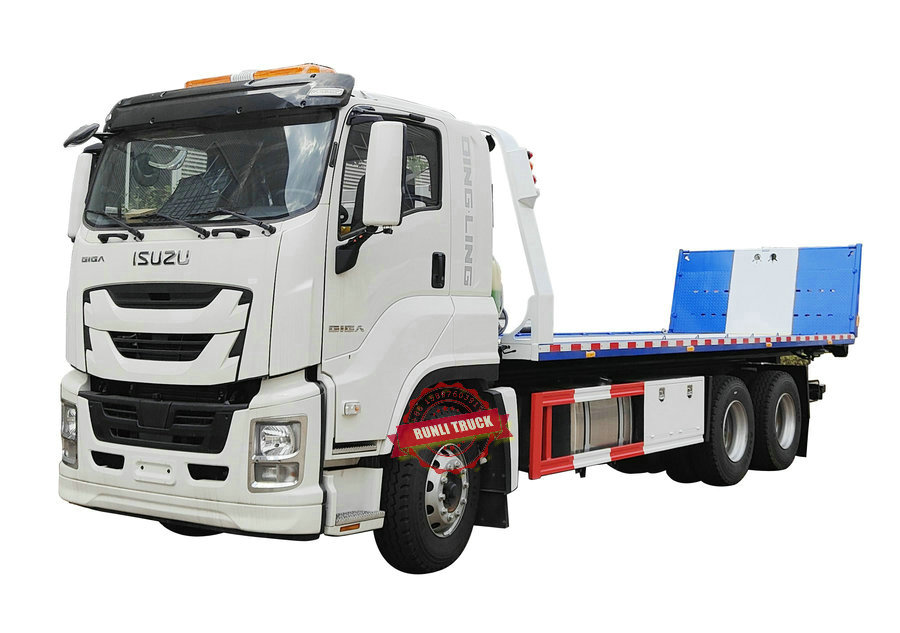

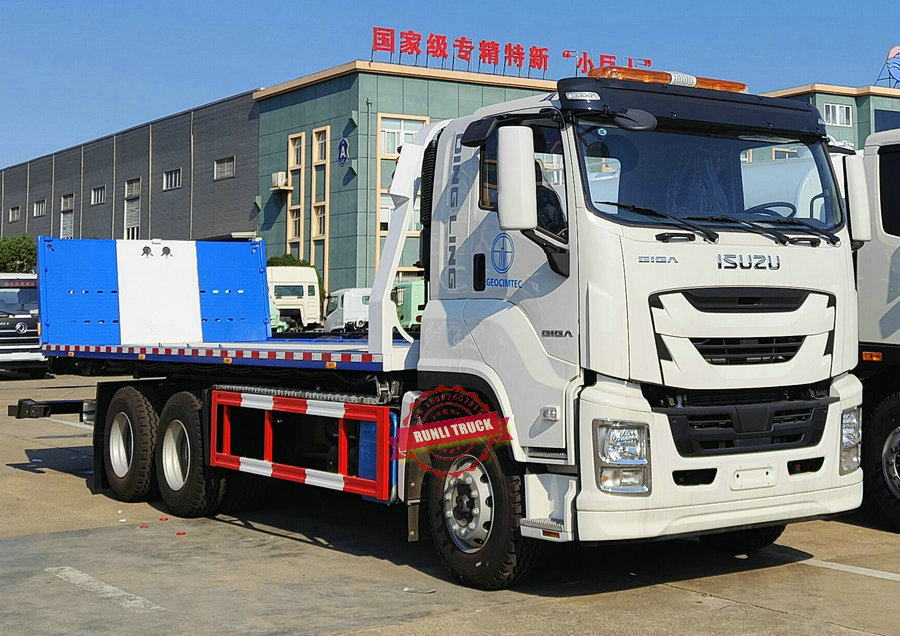

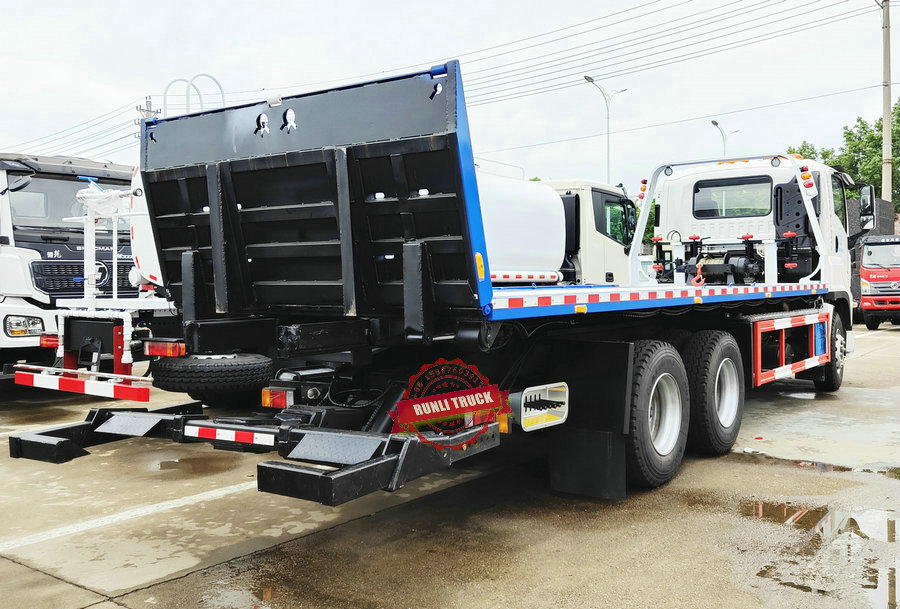

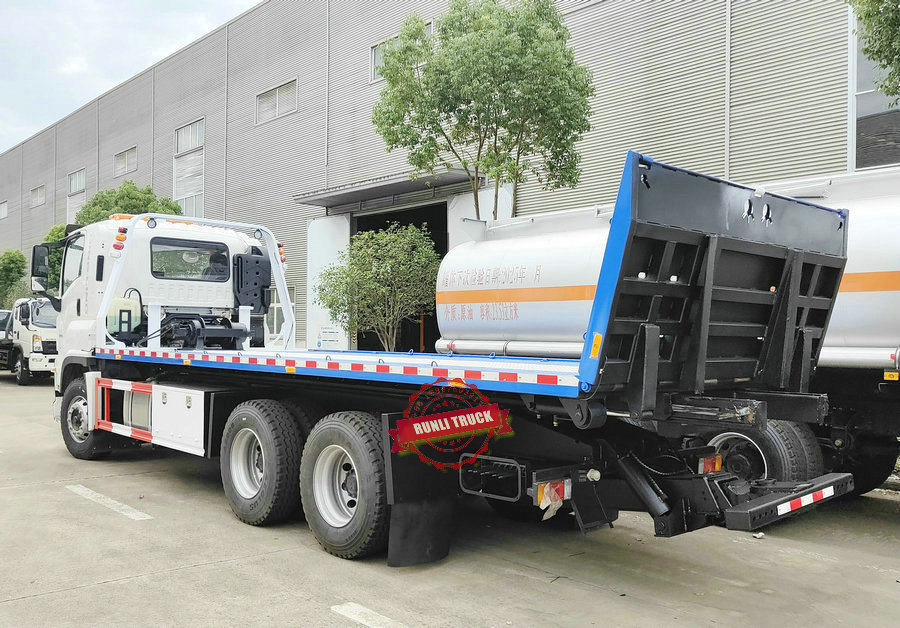

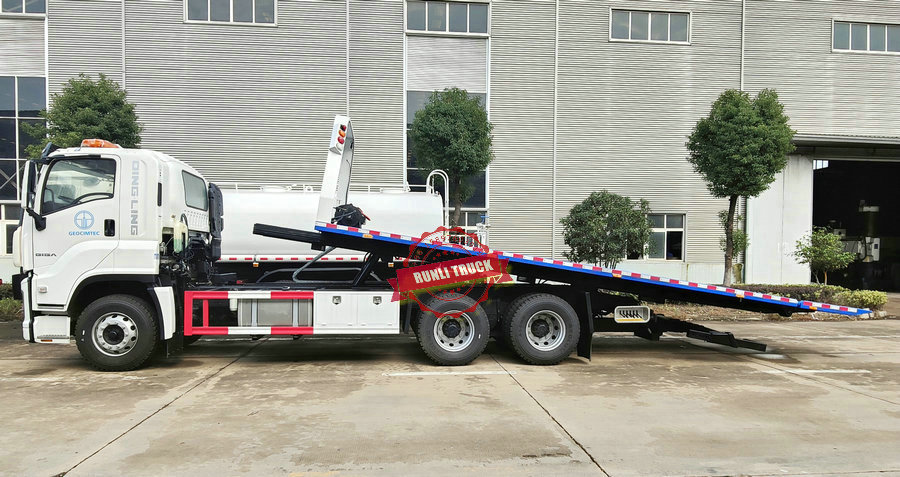

The Actual Pictures of ISUZU GIGA 350HP Towing Truck:

Genuine ISUZU Power System: Original 6UZ1 9.839L large-displacement engine, 350HP, 1422N·m super torque, strong climbing and traction capacity, low fuel consumption, ultra-high durability, global spare parts easy to purchase.
15 Ton Heavy-duty Load-bearing: 8mm thick patterned steel plate flatbed + integral double-layer reinforced subframe, anti-deformation and anti-pressure, meet heavy-load rescue demands.
Professional Hydraulic System: Standard 10T hydraulic winch, bilateral manual hydraulic control, optional wireless remote control and 15T winch, smooth sliding and tilting, safe and labor-saving operation.
Stable 6×4 Chassis: Twin rear axle design, strong ground grip and stable driving, adapt to rough roads, mountain roads and long-distance rescue operations.
Full Customization Service: Support left/right hand drive, emission standard upgrade, imported hydraulic parts, one-drag-two rescue function, color and logo customization.

Optional Upgrade Configuration

Wireless remote control system
15T high-power hydraulic winch
Imported Parker/Husco hydraulic valve group
Rear wheel lift device (one drag two function)
Aluminum alloy toolbox, high-brightness engineering spotlight
RHD right-hand drive, Euro 6 emission
Custom painting and company logo printing

Packaging & Delivery

Standard export waxing and packaging, protect the vehicle from rust and damage during long-distance transportation. Support sea freight bulk ship, ro-ro ship transportation. Provide full set of customs clearance documents to ensure smooth delivery.

After-sales Service

We provide professional one-stop export service, including product customization, inspection, packaging, transportation and document processing. Full vehicle warranty, lifelong technical support and spare parts supply, solve all after-sales problems for global customers.

ISUZU GIGA 6X4 FVZ Total weight: 20-25tons

ISUZU GIGA 6X2 FVZ medium truck's main technical and economic characteristics

The world's leading ISUZU 6UZ1 350HP engine
Adopting the Japanese Denso electronic control high-pressure common rail system, this system can generate stable high fuel injection pressure at both low and high engine speeds, with better fuel atomization effect, more complete combustion, better power performance, lower emissions, smoother operation, and lower noise.

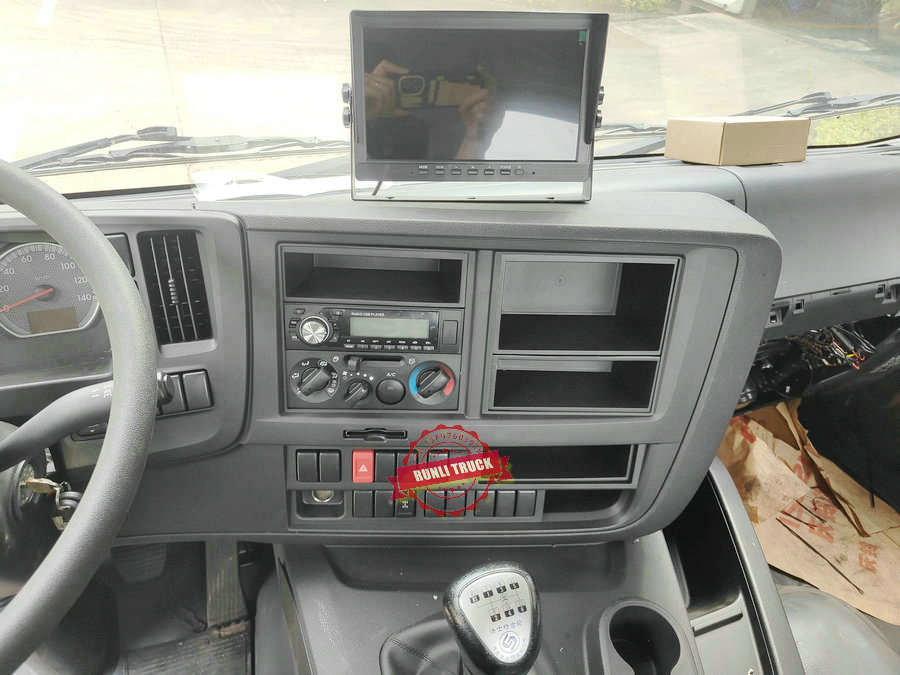

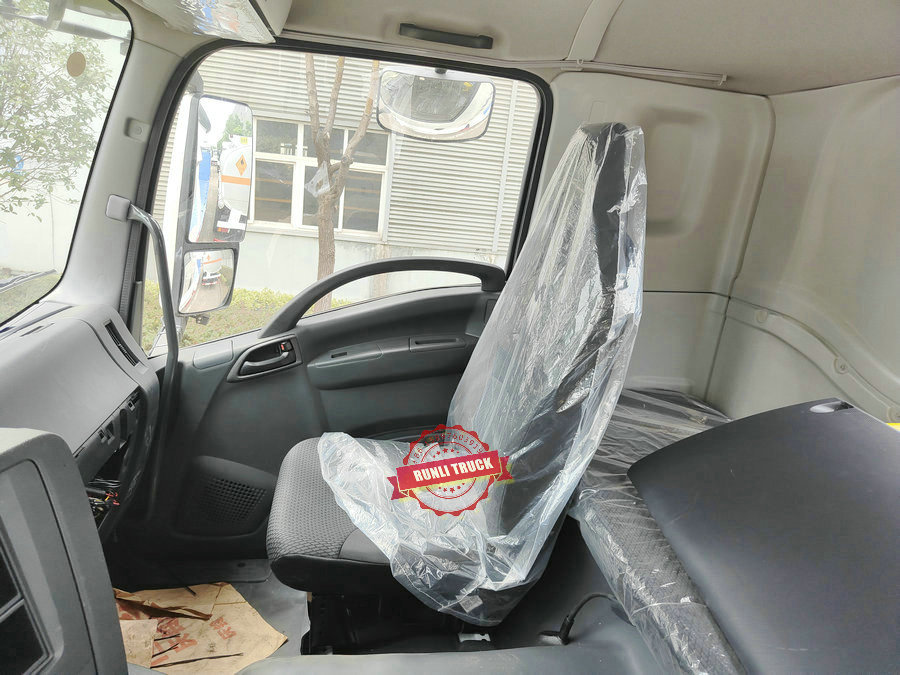

cockpit

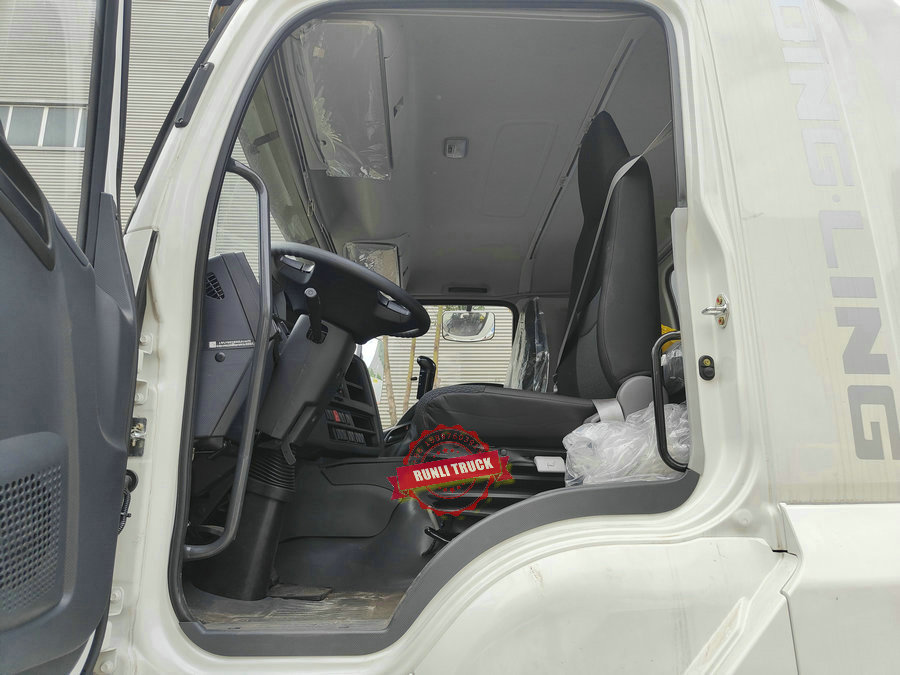

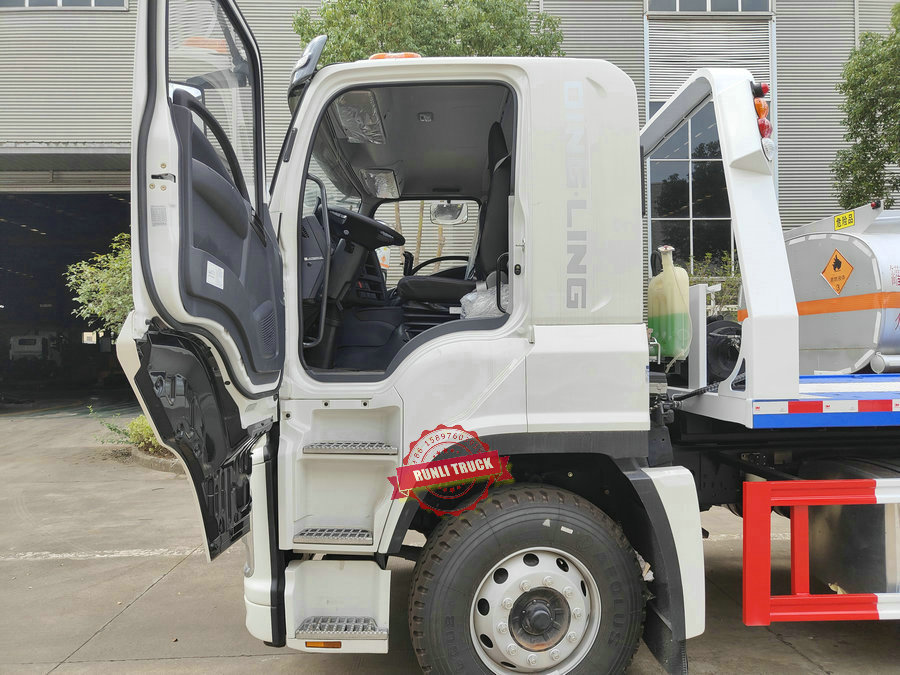

The cab adopts high-strength galvanized steel plate and enclosed structure, forming an effective collision protection zone to protect the safety of drivers and passengers.
Isuzu's high-quality chassis is suitable for various modifications
Rich engine power specifications, wheelbase series, and load capacity combinations of more than 10 modified vehicle chassis can meet various installation modification needs;
frame Of ISUZU FVZ GIGA 6X4 Chassis
High load-bearing capacity frame: Adopting 258 × 80 × 10 specifications, the overall U-shaped structure can meet both heavy load requirements and various modification needs.
axle
Front axle: The integral end fist shaped HZ9.5 front axle is produced using world advanced forging equipment and technology, with strong load-bearing capacity, a maximum load capacity of 6.3 tons, and stable and reliable quality.
Rear axle: ISUZU 13T rear axle is produced using the world's advanced stamping, welding, machining, and assembly production lines and processes, with a load-bearing capacity of 26 tons, which can meet the heavy load requirements of users.
handling

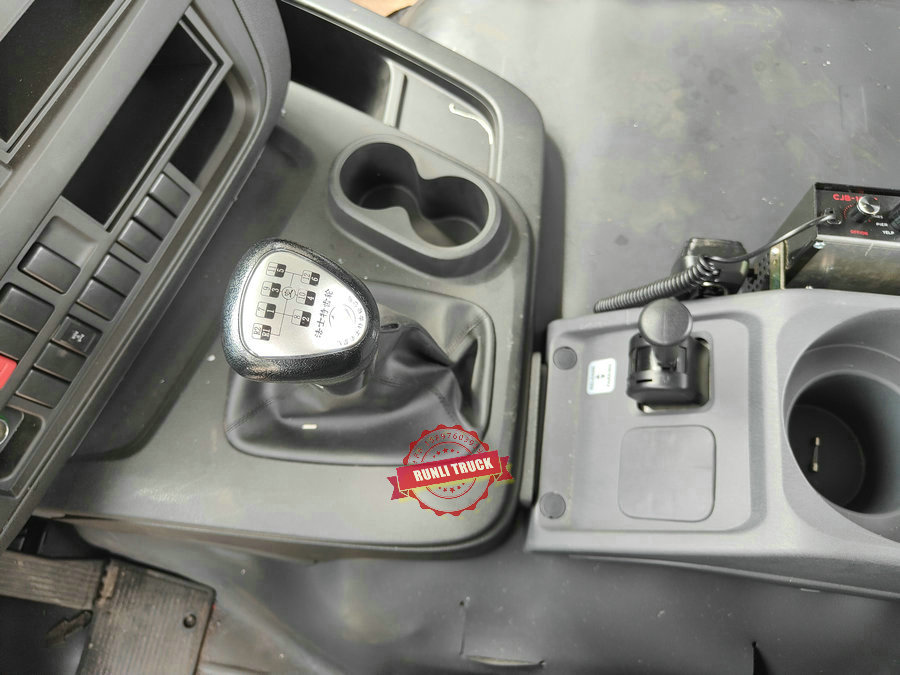

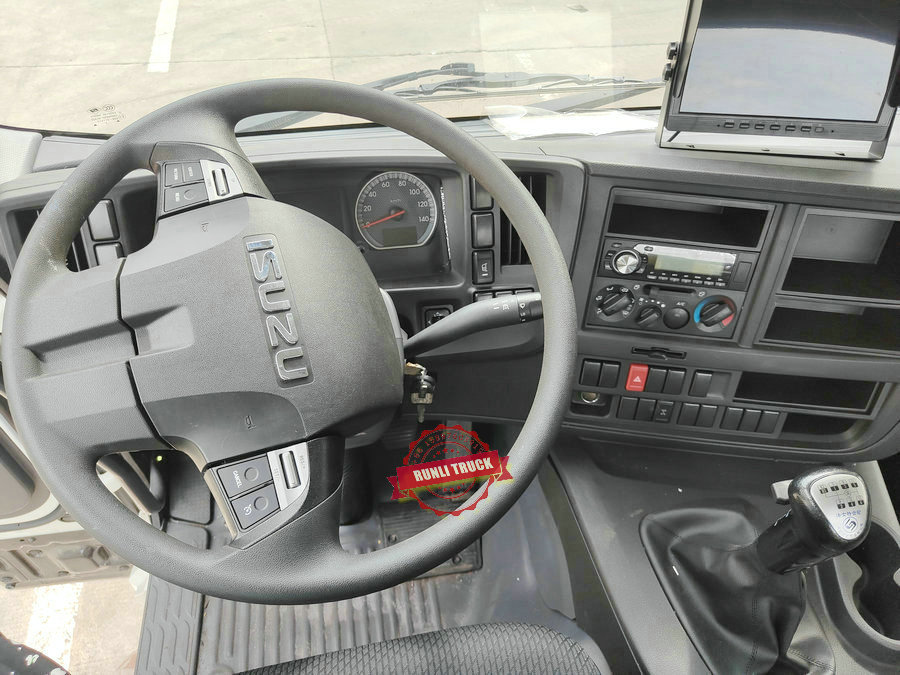

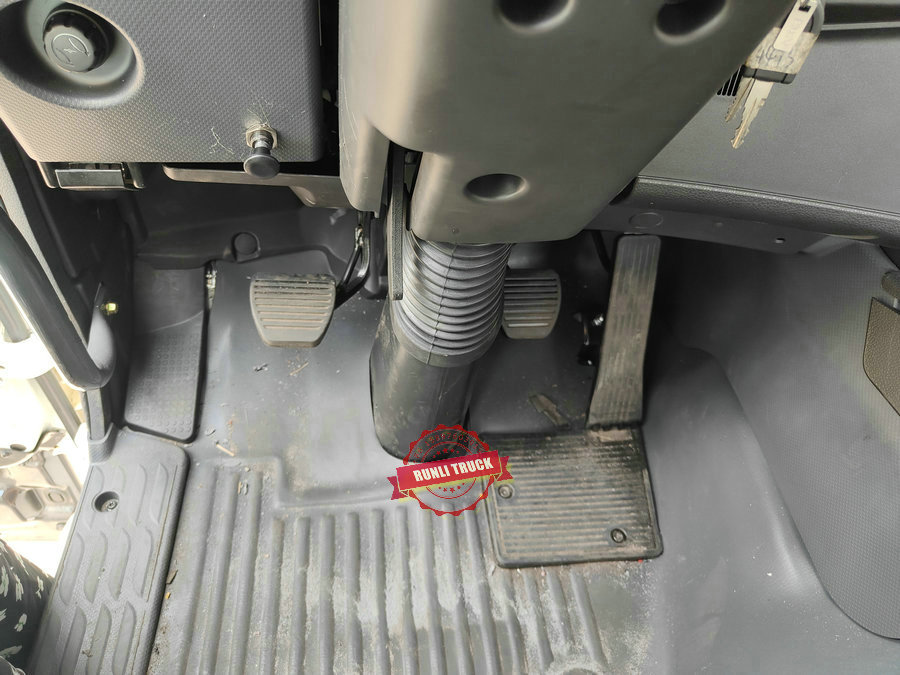

Steering controllability: Equipped with hydraulic power steering device and scientifically designed steering trapezoid, making steering operation easy. The steering wheel angle and height can be adjusted, making it easy for drivers of all shapes to operate; Accelerator pedal control: lightweight, effortless, and easy to operate; Shift control: lightweight, effortless, and clear gear positions.

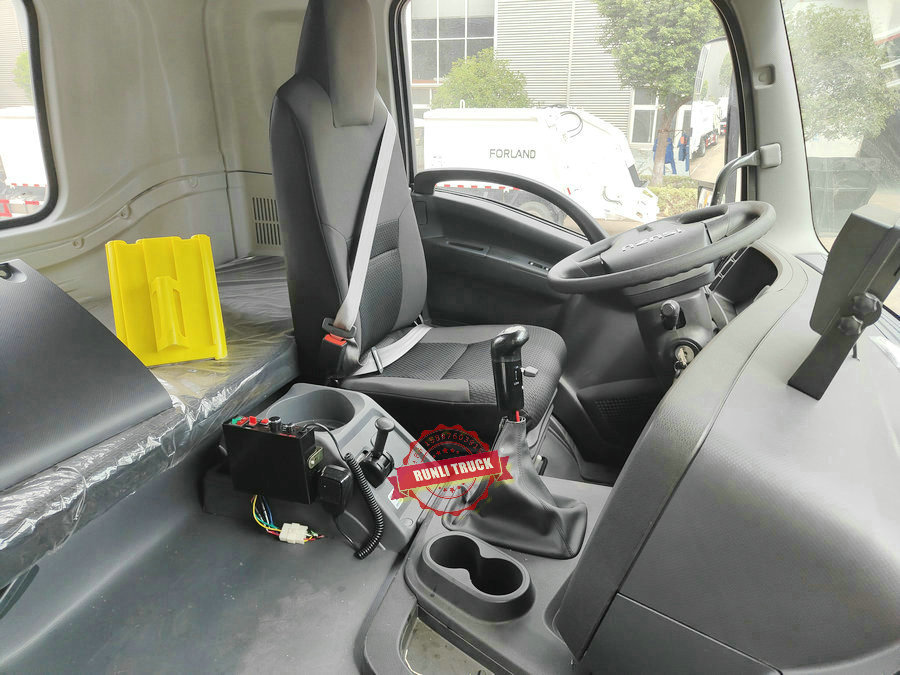

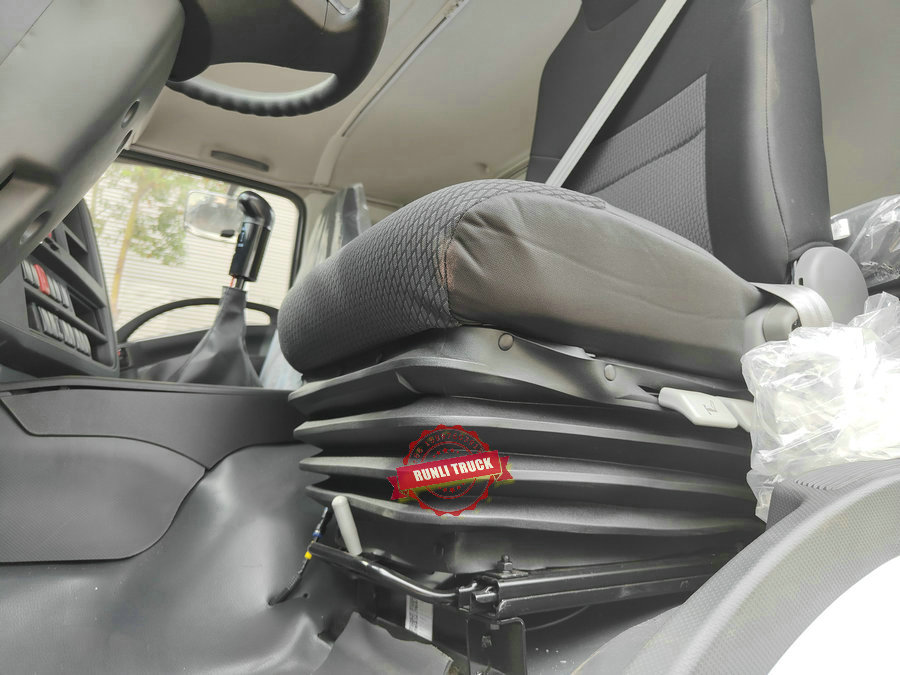

	Cabin: Lightweight and labor-saving operation with strong safety. The steering wheel angle and height can be adjusted, and the accelerator pedal is lightweight, labor-saving, and easy to control. Shifting is also lightweight, labor-saving, and the gear is clear, ensuring safety. In terms of braking, an ABS system has been added
Isuzu 4H engine Displacement: 5.2L Maximum torque: 650N · m Better fuel atomization effect, more complete combustion, smoother operation, lower noise Strong power, low fuel consumption, reliable and durable Suitable for Chinese usage environment
	High quality chassis High load capacity chassis The frame is specially treated with electrophoresis in humid, severe cold, and saline alkali climates, which can adapt to various harsh weather conditions. The lightweight design is an advanced design standard, and the weight is about 1 ton lighter than similar models


Blue Color	Red color	White Color

1. Is this a genuine ISUZU chassis?
Yes, it adopts original Qingling ISUZU GIGA VC61 6×4 chassis, equipped with authentic 6UZ1 350HP engine, original factory quality guarantee, global spare parts support.

2. What is the actual loading capacity of the flatbed?
The rated load is 15 tons. The thickened 8mm patterned steel plate and double-layer subframe ensure stable loading of 15-ton medium and heavy trucks, buses and small construction machinery, no deformation.
3. Can you provide LHD and RHD versions?
Both LHD (left hand drive) and RHD (right hand drive) are available, compatible with Southeast Asia, Africa, Middle East, Australia and other markets.
4. What emission standards can be matched?
Support Euro 5 and Euro 6 emission standards, meeting the import inspection requirements of most countries.
5. What is the configuration of the hydraulic system?
Standard domestic high-quality hydraulic valve group and 10T hydraulic winch. Imported Parker/Husco valve group, 15T winch and wireless remote control can be upgraded optionally, with stable operation and low failure rate.

6. Does it support one-truck dual-rescue (one drag two)?
Yes. We can install rear wheel lift device to realize flatbed loading + rear traction, completing two rescue tasks at one time, improving working efficiency.
7. What is the delivery time?
Standard configuration delivery time is 10-15 working days. Customized configuration (RHD, Euro 6, imported hydraulic parts) takes 15-20 working days.
8. What export documents can you provide?
We provide full set of export documents including commercial invoice, packing list, bill of lading, factory certificate, CO origin certificate, and English parameter nameplate, supporting global customs clearance.
9. What is your warranty policy?
The whole vehicle enjoys 1-year or 30,000km warranty, engine and gearbox core parts for 2 years. We provide lifelong technical consultation and spare parts supply service.
10. Can you customize color and logo?
Answer: Yes, we support custom body painting, company logo printing and personalized exterior and interior customization according to customer requirements.

We have 20 years of experience in exporting specialized vehicles and can provide customized export services according to user requirements.

Export Document:
SGS, GCC,CCC

Specialized export transportation method:
---- Reasonably select transportation mode based on the size of the vehicle and the characteristics of the destination port
Container, Bulk Shippment, flat rack
---- Safe, efficient, and fast
