350HP ISUZU GIGA FVZ Transit Mixer Truck / ISUZU FVR Cement Mixer Truck

ISUZU GIGA 6×4 350HP Mixer Truck

Chassis: ISUZU VC61 GIGA 6x4, Engine: 6UZ1, 350HP, Euro 3/Euro 4/Euro 5/Euro 6

ISUZU original heavy-duty FVZ chassis, built-in factory PTO, perfectly matched for mixer application
6UZ1 engine proven reliable, low fuel consumption, easy maintenance & spare parts global supply
Strong low-speed torque, excellent climbing performance for mountain construction sites
Mature 6×4 tandem rear axle design, stable when fully loaded
Widely recognized in Southeast Asia, Africa, Central Asia, Oceania construction market
Support LHD / RHD customization, multiple emission optional

Inquiry

Add to Quote List View Quote List

Description

350HP ISUZU GIGA FVZ Transit Mixer Truck / ISUZU FVR Cement Mixer Truck

The ISUZU FVZ 350HP 6×4 concrete mixer truck is a heavy-duty construction vehicle specially customized for overseas engineering projects. Powered by the reliable ISUZU 6UZ1-TCG61 turbocharged diesel engine with 350 horsepower and 1422N·m high torque, it delivers strong climbing performance and stable power output, perfectly matching 8CBM–10CBM mixing drum loading demands.

Equipped with a Fast 12-speed manual transmission and original factory PTO system, the truck ensures steady power supply for the mixer hydraulic system without additional modification. Adopting a 6×4 drive configuration and full air brake system with ABS, it features excellent load capacity, driving stability and safety on mountain roads, rough construction sites and long-distance transportation scenarios.

Known for low failure rate, global after-sales support and outstanding fuel economy, the ISUZU FVZ 350HP mixer truck is the most popular middle-to-heavy duty mixing vehicle for Africa, Southeast Asia, Central Asia and South America markets. Both LHD and RHD versions are available to meet different national traffic regulations.

More ISUZU GIGA FTR 4X2 potable water truck,ISUZU ISUZU Cargo Truck, ISUZU Tanker Truck, ISUZU Van Truck, ISUZU Refrigerator Truck, ISUZU Garbage Truck and Other ISUZU Special Trucks,
Please contact With Pinky, Whatsapp / Wechat +86 15897603919

The Detail Specification of 350HP ISUZU GIGA FVZ Transit Mixer Truck / ISUZU FVR Cement Mixer Truck :

ISUZU GIGA FVZ VC66 Reinforced Heavy Truck Mixer Truck
Install the new Isuzu VC61 level cab,Flat top, one and a half rows
Driving type	6 x 4 (left-hand drive)
Engine:	6UZ1-TCG61 350HP 6Cylidner Inline Euro 3 /Euro 4/Euro5/Euro 6
Transmission:	FAST 12JSD180TA 12F/2R By manual
Front axle	HDZ9.5
Rear Axle	13T Isuzu
Tires	Front wheel 385/65R22.5 20PR,
Tires	rear wheel 315/80R22.5 20PR
Suspension	Semi elliptical steel plate spring with hydraulic two-way action cylinder shock absorber
Fuel tank	400 liters
Wheelbase	3900+1370

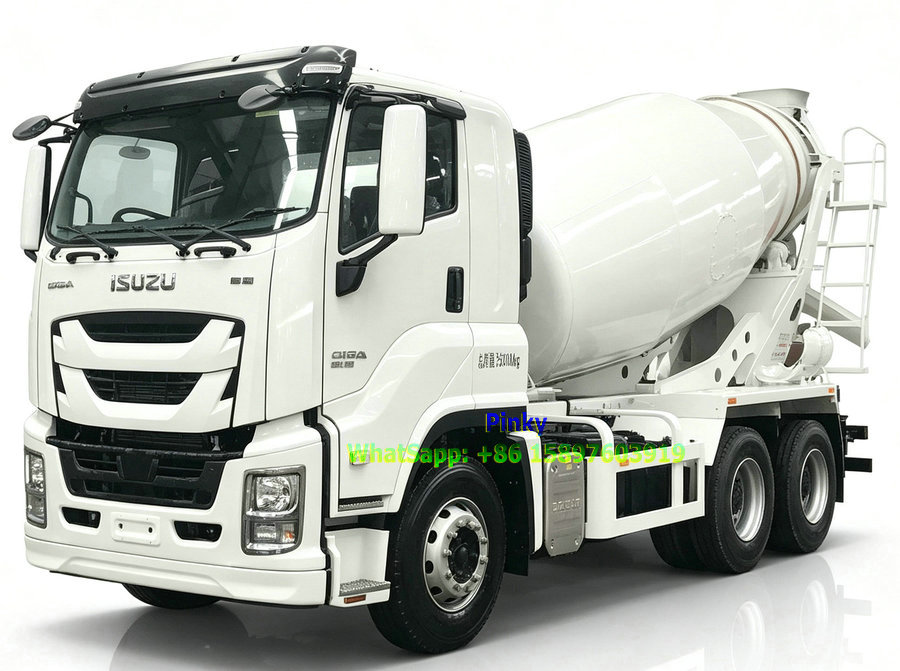

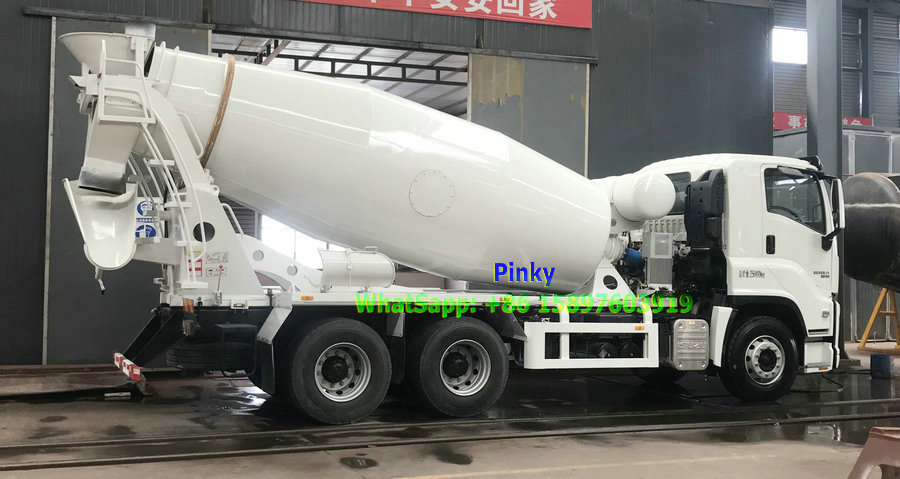

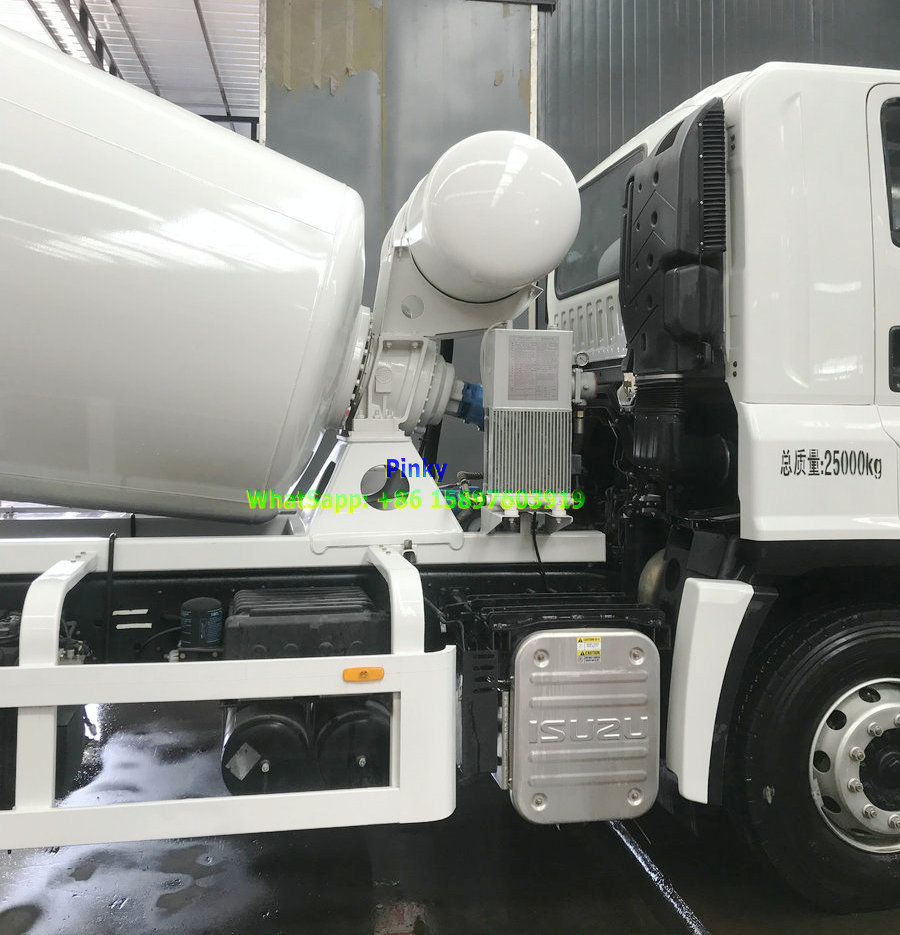

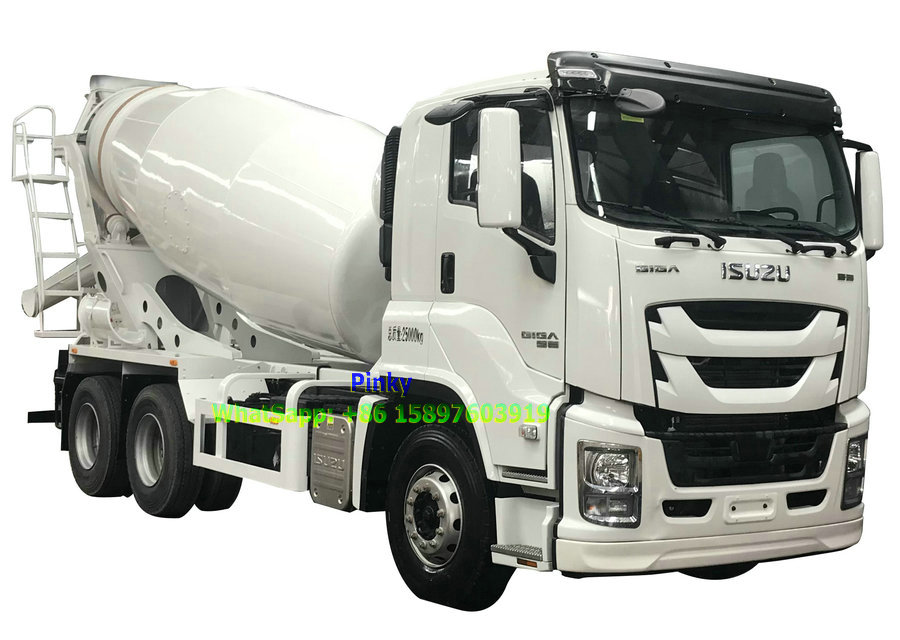

The Actual Pictures of 350HP ISUZU GIGA FVZ Transit Mixer Truck / ISUZU FVR Cement Mixer Truck:

Recommended mixing volume: 7 m³ ~ 10 m³

Engineering suggestion: FVZ 6×4 chassis optimal 8m³, max safe loading 10m³; overloading will shorten chassis service life.

Drum material: High strength wear-resistant alloy steel
Rotation speed: 0~14 rpm
Residual concrete rate ≤0.5%
Hydraulic system options: Imported PMP / ZF / EATON / Rexroth pump + motor + reducer
Water supply: Pneumatic water system, water tank: 400L
Standard accessories: Feeding hopper, discharge chute, maintenance ladder, manhole cover

The ISUZU FVZ 6x4 mixer truck is ideal for medium-sized construction projects and batching plants.
We supply both brand-new Japanese original ISUZU FVZ chassis and CKD domestic assembled ISUZU FVZ chassis.
Mixer drum capacity can be customized: 7cbm,8cbm,9cbm,10cbm.
Left hand drive and right hand drive are available.
Hydraulic components can choose Chinese brand or famous European imported brands.

Our concrete mixer truck has absorbed the technical essence of mixer truck both in China and abroad. And adopt a lot of new technology and new producing equipment to make the mixer truck have many special advantages:

Themixing drum shell and blade made of special material T610, has higher wear resistance and increase the service life of the mixing drum shell.
Largerspiral angle is more conducive to discharge, with lower residue feeding rate; increase internal auxiliary blade to make concrete fall better effect, effectively improve the quality of mixing.
Therolling ring of the mixing drum is made of cast steel with integral casting. Good quality bearings, the service life is guaranteed on the basic of reliability.
The hydraulic system adopts closed hydraulic circuit to ensure the reliable performance of the mixer;
lighting system is installed and operated in the cabin of mixer truck,
Safe, reliable, light and easy to operate. The driving room is equipped with a mixing cylinder, a rotating self-locking mechanism, and a beautiful appearance design;
Automatic welding process, tank painting is baking process

Packaging & Delivery

Standard export waxing and packaging, protect the vehicle from rust and damage during long-distance transportation. Support sea freight bulk ship, ro-ro ship transportation. Provide full set of customs clearance documents to ensure smooth delivery.

After-sales Service

We provide professional one-stop export service, including product customization, inspection, packaging, transportation and document processing. Full vehicle warranty, lifelong technical support and spare parts supply, solve all after-sales problems for global customers.

ISUZU GIGA 6X4 FVZ Total weight: 20-25tons

ISUZU GIGA 6X2 FVZ medium truck's main technical and economic characteristics

The world's leading ISUZU 6UZ1 350HP engine
Adopting the Japanese Denso electronic control high-pressure common rail system, this system can generate stable high fuel injection pressure at both low and high engine speeds, with better fuel atomization effect, more complete combustion, better power performance, lower emissions, smoother operation, and lower noise.
cockpit
The cab adopts high-strength galvanized steel plate and enclosed structure, forming an effective collision protection zone to protect the safety of drivers and passengers.
Isuzu's high-quality chassis is suitable for various modifications
Rich engine power specifications, wheelbase series, and load capacity combinations of more than 10 modified vehicle chassis can meet various installation modification needs;
frame Of ISUZU FVZ GIGA 6X4 Chassis
High load-bearing capacity frame: Adopting 258 × 80 × 10 specifications, the overall U-shaped structure can meet both heavy load requirements and various modification needs.
axle
Front axle: The integral end fist shaped HZ9.5 front axle is produced using world advanced forging equipment and technology, with strong load-bearing capacity, a maximum load capacity of 6.3 tons, and stable and reliable quality.
Rear axle: ISUZU 13T rear axle is produced using the world's advanced stamping, welding, machining, and assembly production lines and processes, with a load-bearing capacity of 26 tons, which can meet the heavy load requirements of users.
handling
Steering controllability: Equipped with hydraulic power steering device and scientifically designed steering trapezoid, making steering operation easy. The steering wheel angle and height can be adjusted, making it easy for drivers of all shapes to operate; Accelerator pedal control: lightweight, effortless, and easy to operate; Shift control: lightweight, effortless, and clear gear positions.

	Cabin: Lightweight and labor-saving operation with strong safety. The steering wheel angle and height can be adjusted, and the accelerator pedal is lightweight, labor-saving, and easy to control. Shifting is also lightweight, labor-saving, and the gear is clear, ensuring safety. In terms of braking, an ABS system has been added
Isuzu 4H engine Displacement: 5.2L Maximum torque: 650N · m Better fuel atomization effect, more complete combustion, smoother operation, lower noise Strong power, low fuel consumption, reliable and durable Suitable for Chinese usage environment
	High quality chassis High load capacity chassis The frame is specially treated with electrophoresis in humid, severe cold, and saline alkali climates, which can adapt to various harsh weather conditions. The lightweight design is an advanced design standard, and the weight is about 1 ton lighter than similar models


Blue Color	Red color	White Color

1. Is this a genuine ISUZU chassis?
Yes, it adopts original Qingling ISUZU GIGA VC61 6×4 chassis, equipped with authentic 6UZ1 350HP engine, original factory quality guarantee, global spare parts support.

2. What drum volume can we build on ISUZU FVZ 6×4 chassis?
We recommend 7m³, 8m³, 9m³. The maximum safe configuration is 10m³. We do not suggest over 10m³ to avoid chassis overload and shorten service life. The most popular export specification is 8 CBM mixer drum.
3. Can you provide LHD and RHD versions?
Both LHD (left hand drive) and RHD (right hand drive) are available, compatible with Southeast Asia, Africa, Middle East, Australia and other markets.
4. What emission standards can be matched?
Support Euro 3 Euro 4bEuro 5 and Euro 6 emission standards, meeting the import inspection requirements of most countries.
5. What hydraulic brands for the mixer drum system?
Multiple selections:

Imported: ZF, PMP, Eaton, Rexroth hydraulic pump, motor and reducer
Domestic high-quality hydraulic assembly for cost-saving solutions
You can choose based on your budget and market demand.

6. How much water capacity for the washing water tank?
Standard water tank: 400L pneumatic water supply system for cleaning residual concrete. Larger water tank can be customized.
7. What is the delivery time?
Standard configuration delivery time is 10-15 working days. Customized configuration (RHD, Euro 6, imported hydraulic parts) takes 15-20 working days.
8. What export documents can you provide?
We provide full set of export documents including commercial invoice, packing list, bill of lading, factory certificate, CO origin certificate, and English parameter nameplate, supporting global customs clearance.
9. What is your warranty policy?
The whole vehicle enjoys 1-year or 30,000km warranty, engine and gearbox core parts for 2 years. We provide lifelong technical consultation and spare parts supply service.
10. Can you customize color and logo?
Answer: Yes, we support custom body painting, company logo printing and personalized exterior and interior customization according to customer requirements.

We have 20 years of experience in exporting specialized vehicles and can provide customized export services according to user requirements.

Export Document:
SGS, GCC,CCC

Specialized export transportation method:
---- Reasonably select transportation mode based on the size of the vehicle and the characteristics of the destination port
Container, Bulk Shippment, flat rack
---- Safe, efficient, and fast
