ISUZU 700P 3cbm Concrete Mixer Truck | Small Cement Mixer Lorry

✅Original ISUZU chassis, durable and easy maintenance worldwide

More ISUZU 700P Dump Truck,ISUZU ISUZU Cargo Truck, ISUZU  Tanker Truck, ISUZU Van Truck, ISUZU Refrigerator Truck, ISUZU Garbage Truck and Other ISUZU Special Trucks,
Please contact With Pinky, Whatsapp / Wechat +86 15897603919



The Detail Specification of ISUZU 700P 3m3 Small Concrete Mixer Truck :

The tank body is made of national standard manganese steel Q345 material, with a thickness of 4MM, a head of 6MM, and blades of 4MM, which is sturdy and durable. installed the KY50-5-C gearbox, RC50 gear oil pump, BMSY200 motor, and DL-20 multi way valve, the performance is stable and reliable. It is also equipped with domestic radiators and pneumatic water supply devices to ensure long-term operation

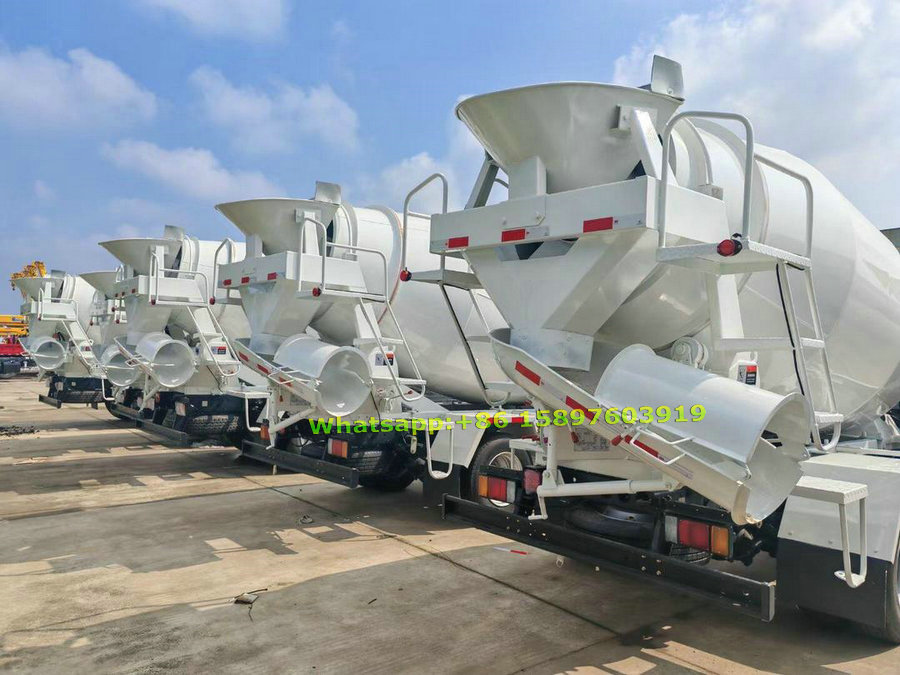

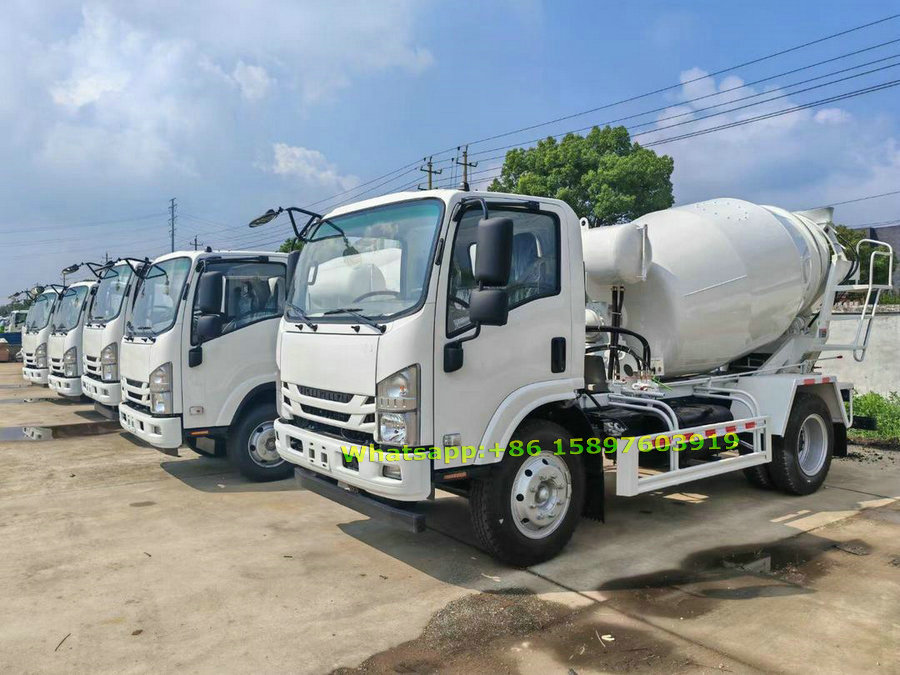

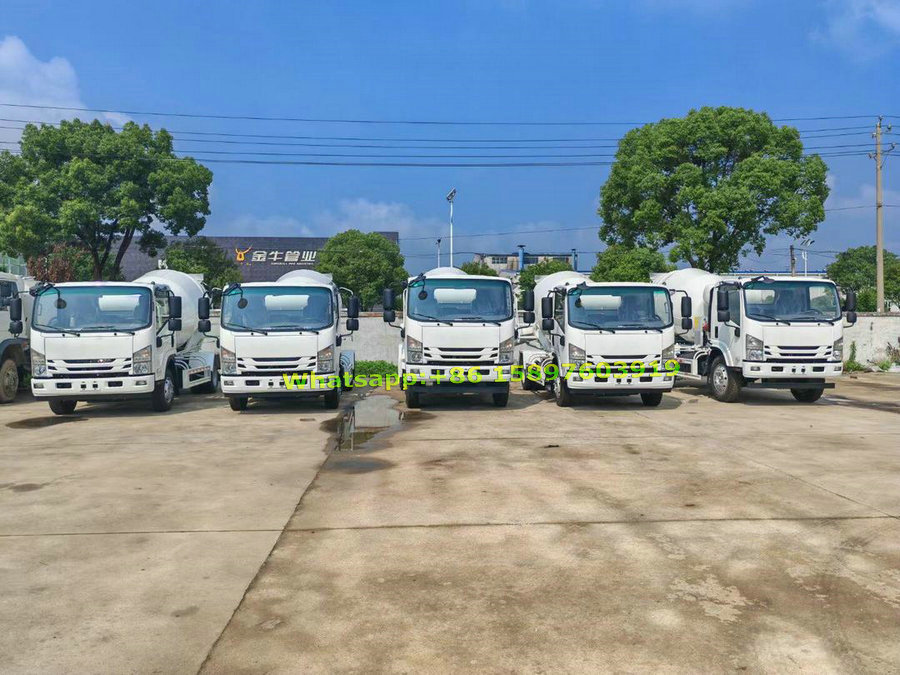

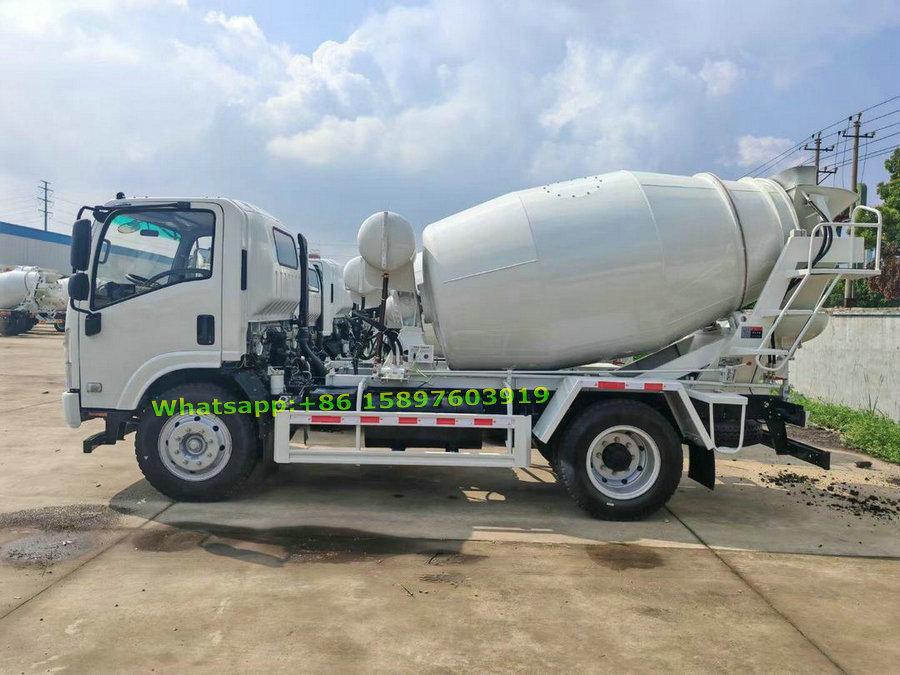

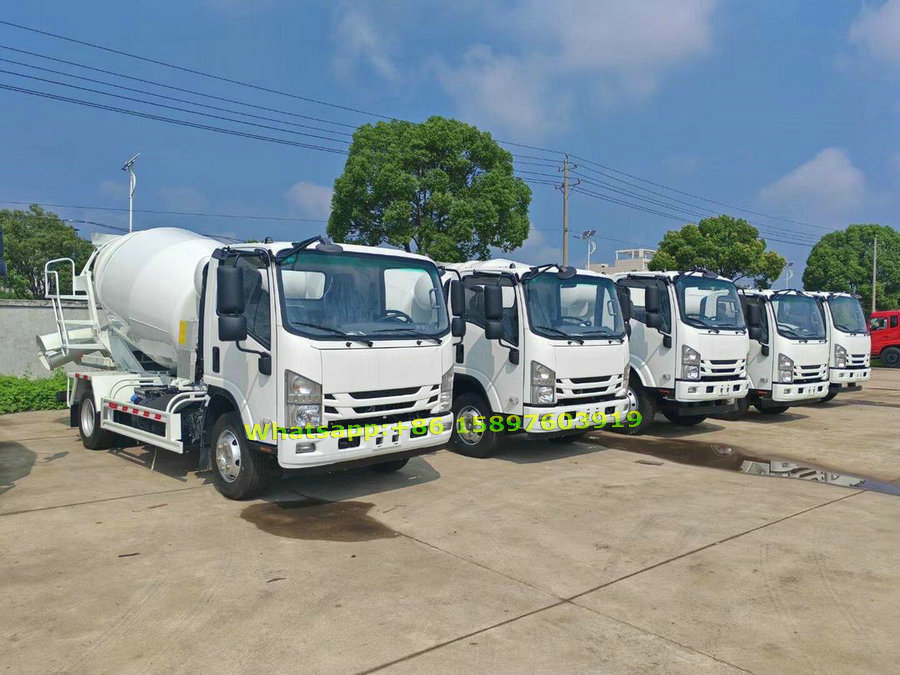

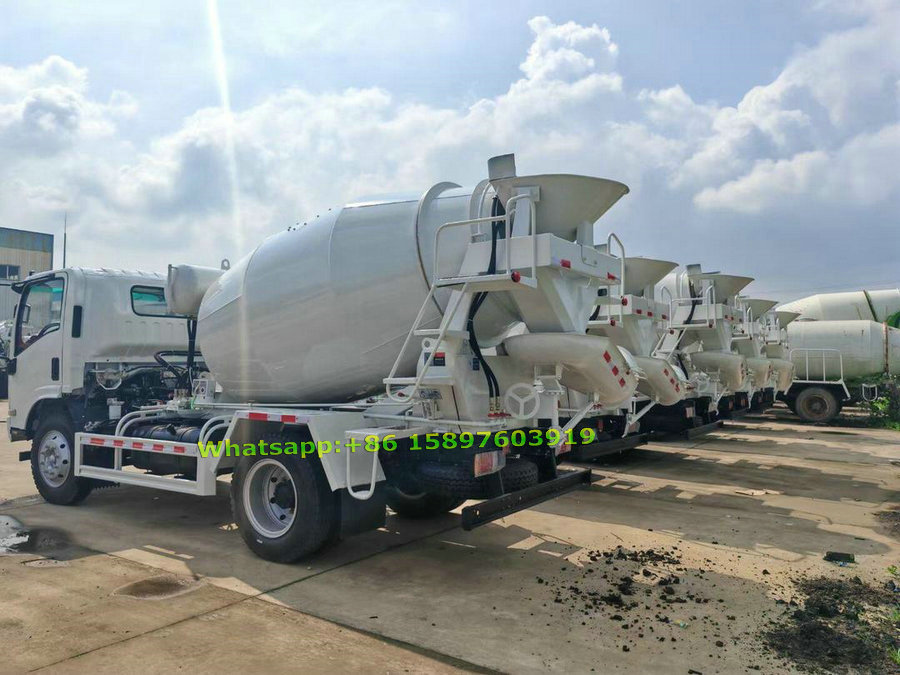

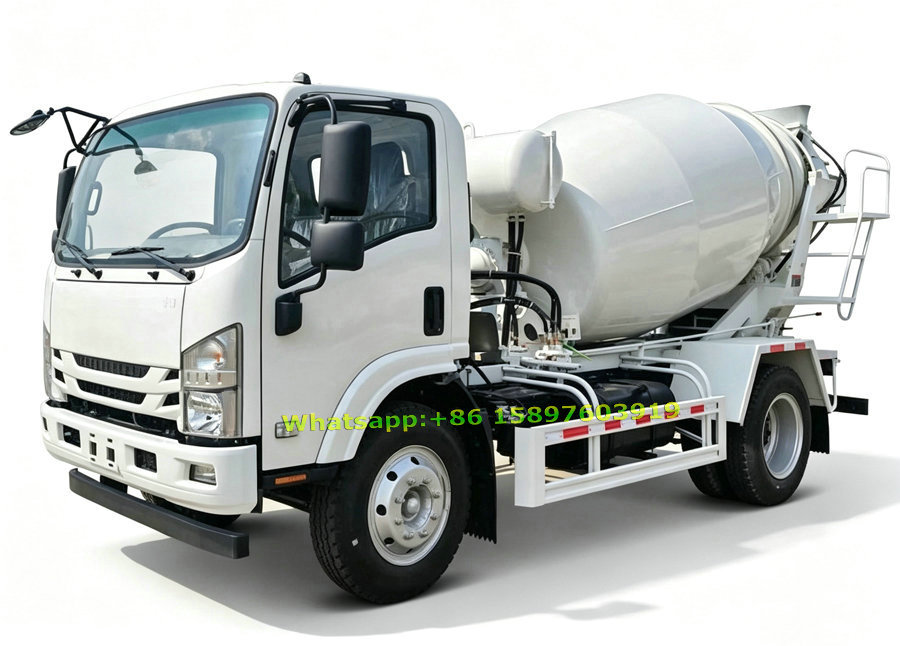

The Actual Pictures of ISUZU 700P 3m3 Small Concrete Mixer Truck :

• Effective Mixing Volume: 3 cbm
• Geometric Volume: 4.2 cbm
• Tank Material: Q345 wear-resistant manganese steelTank barrel:5mm, End plate:6mm, Spiral blade:5mm
• Hydraulic System Options
  1. Economy version: Domestic Keyi reducer + Sunny pump & motor + air cooler
  2. Export Premium version: Italy PMP / Bonfiglioli complete hydraulic package
• Tank Rotation Speed: 0~12 rpm (Forward mixing, reverse discharging)
• Feeding Capacity ≥2.8 m³/min
• Discharging Capacity ≥1.2 m³/min
• Concrete Residual Rate ≤0.5%
• Water Supply System: 400L air pressure water tank
• Operation: Dual side mechanical control levers

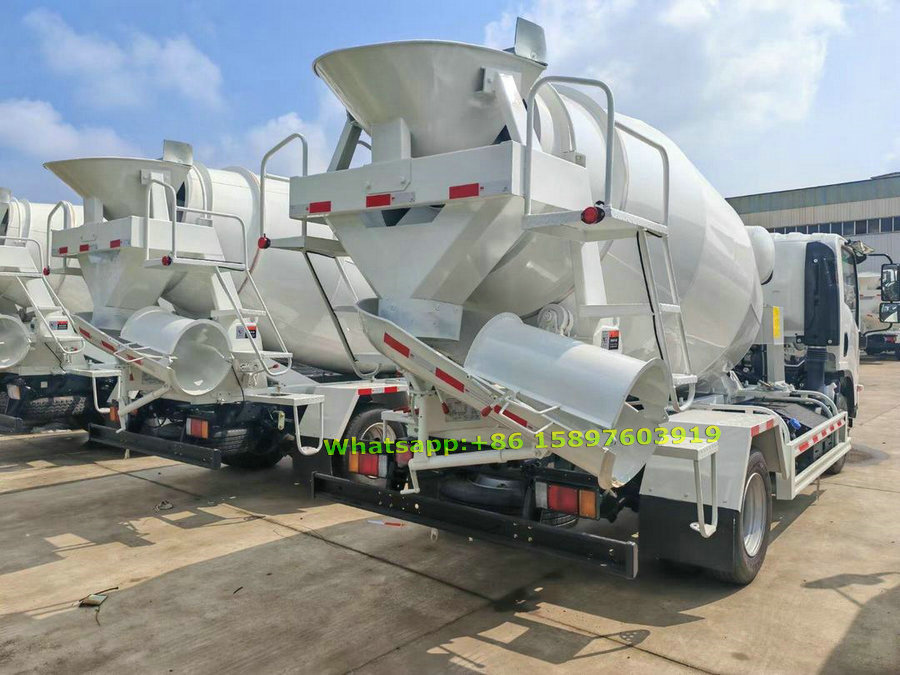

• Discharge chute: 180° rotatable, auxiliary receiving hopper, anti-slip ladder

Application

Small construction project, rural housing construction, road maintenance, slope protection, tunnel narrow site, short-distance concrete transportation, suitable for areas inaccessible to large mixer trucks.

Optional Accessories

Remote accelerator in cabin, monitoring camera system, thicker wear-resistant tank liner, enlarged water tank, aluminum fuel tank, customized painting, English operation manual, spare parts list.

Our concrete mixer truck has absorbed the technical essence of mixer truck both in China and abroad. And adopt a lot of new technology and new producing equipment to make the mixer truck have many special advantages:

1. Themixing drum shell and blade made of special material T610, has higher wear resistance and increase the service life of the mixing drum shell.

2. Largerspiral angle is more conducive to discharge, with lower residue feeding rate; increase internal auxiliary blade to make concrete fall better effect, effectively improve the quality of mixing.

3. Therolling ring of the mixing drum is made of cast steel with integral casting. Good quality bearings, the service life is guaranteed on the basic of reliability.
4. The hydraulic system adopts closed hydraulic circuit to ensure the reliable performance of the mixer;
5. lighting system is installed and operated in the cabin of mixer truck,
6. Safe, reliable, light and easy to operate. The driving room is equipped with a mixing cylinder, a rotating self-locking mechanism, and a beautiful appearance design;
7. Automatic welding process, tank painting is baking process

ISUZU 700P medium truck's main technical and economic characteristics

1. DPF post-processing system is adopted, without adding urea, reducing users' use cost, no urea device, better adaptability for modification.
2. Strong power, strong vehicle carrying capacity and fast speed
3. Low fuel consumption, high oil price era, ultra-low operating costs more prominent
4. Long service life, reliable and durable, ultra-low maintenance cost
5. High safety, equipped with unique collision energy absorption safety system
6. Comfortable, business-class ride
7. Environmental protection, qinqin emissions, harmony with nature
8. Low life cost to create more value for customers

Beautiful and comfortable, business class like ride experience

The latest international popular modeling, humanized interior, power steering, easy to operate, the cockpit can be turned over ata large Angle, easy to maintain, light vehicle, strong bearing capacity, cargo compartment volume, the use of high strength,wear-resistant new materials and high-precision manufacturing technology, to achieve the perfect combination of vehicle lightweight and reliability.

	Lightweight chassis By adopting new materials and technologies, the chassis becomes more wear-resistant, precise, capable of withstanding a wide range, and has strong tolerance, possessing both lightweight advantages and reliability features
Brand new engine Strong power, low fuel consumption, reliable durability, more environmentally friendly, stronger fuel adaptability, higher cost-effectiveness, and more specifications

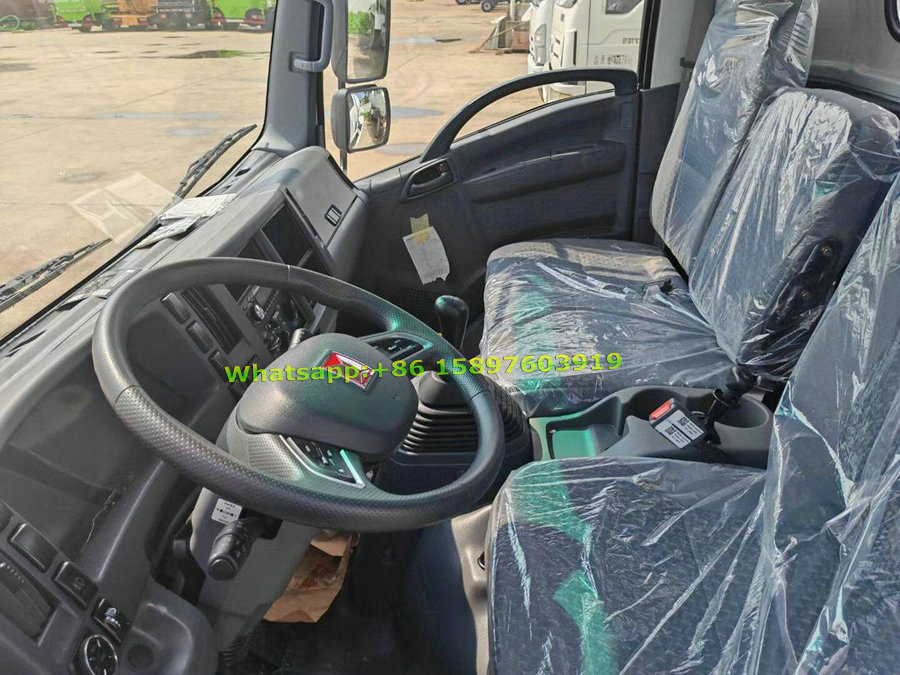

Intelligent driving cabin Wide field of view, spacious space, fully equipped with connected car system, full LCD instrument panel, multifunctional steering wheel, automatic air conditioning, power windows, remote key, etc

Blue Color	yellow color	White Color

Q1: What is the effective mixing volume of ISUZU 700P mixer truck?

A: Effective volume 3 cubic meters, geometric volume 4.2 m³.

Q2: Can we choose RHD right hand drive for export?

A: Yes, LHD and RHD are both available.

Q3: What hydraulic brands can be equipped?

A: Optional Italy PMP, Bonfiglioli or domestic hydraulic kits.

Q4: What emission standards can you offer?

A: Euro 3/Euor 4/Euro5 / Euro6 to satisfy different country customs requirements.

We have 20 years of experience in exporting specialized vehicles and can provide customized export services according to user requirements.

Export Document:
SGS, GCC,CCC

Specialized export transportation method:
---- Reasonably select transportation mode based on the size of the vehicle and the characteristics of the destination port
     Container, Bulk Shippment, flat rack
---- Safe, efficient, and fast
