ISUZU GIGA FTR 4X2 Stainless Steel Potable Water Tank Truck for Drinking Water Transportation

Name: ISUZU GIGA FTR 4X2 Stainless Steel Potable Water Tank Truck for Drinking Water Transportation
Brand: HUBEI RUNLI SPECIAL AUTOMOBILE CO.,LTD
Rating: 5 (1 reviews)

Factory supply ISUZU GIGA FTR 4X2 potable water truck, equipped with SUS304 food-grade stainless steel tank, 205HP powerful engine, 10-12CBM large capacity. Custom LHD/RHD, multi-function sprinkler for drinking water delivery & municipal dust control.

Inquiry

Add to Quote List View Quote List

Description

ISUZU GIGA 4X2 FTR Stainless Steel Potable Water Truck 10-12CBM

The ISUZU GIGA 4X2 FTR potable water truck is a heavy-duty, high-end water transport vehicle built on the authentic ISUZU GIGA FTR 4×2 commercial chassis. Designed specifically for safe drinking water transportation and multi-purpose municipal operations, this water tanker adopts full SUS304 food-grade stainless steel tank structure with 10–12CBM large loading capacity. Compared with ordinary light-duty water trucks, the GIGA FTR model features stronger bearing capacity, more stable driving performance, higher power output and longer service life, making it the ideal choice for government projects, urban sanitation, remote area water supply and emergency drought relief.

More ISUZU GIGA FTR 4X2 potable water truck,ISUZU ISUZU Cargo Truck, ISUZU Tanker Truck, ISUZU Van Truck, ISUZU Refrigerator Truck, ISUZU Garbage Truck and Other ISUZU Special Trucks,
Please contact With Pinky, Whatsapp / Wechat +86 15897603919

The Detail Specification of ISUZU GIGA 4X2 FTR Stainless Steel Potable Water Truck 10-12CBM :

Brand of Truck	ISUZU FVR FVZ Middle Heavy Duty
name of truck
driving type	4x2 6Wheels optional all wheel drive 4x4
Cabin type	Brand new Isuzu 4X level VC61 driver's cab, air conditioner
wheelbase	3900 / 4500 / 5000 / 5350 / 5550 / 5800 / 6300 / 7200
Engine	4HK1-TCG60
Engine power	205HP
displacement	5190L
engine type	4-Cylinder Engine
Gear box	ISUZU MLD 6 Forward
Front axle loading capacity	6.3Tons
rear axle loading capacity	13Tonsx2
tire	295/80R22.5 18PR
other standard equipment	Heating and cooling air conditioning, directional assistance, central locking system, electric doors and windows, multifunctional steering wheel, multifunctional LCD instrument panel, with ABS, air brake cut-off

Material: Full SUS304 food-grade stainless steel, tank wall 4mm, bottom 5mm thick, anti-rust, non-toxic, no secondary pollution to drinking water

Equipped with genuine ISUZU GIGA FTR 4×2 chassis, the vehicle delivers reliable performance and global after-sales support. It is powered by a high-efficiency diesel engine with 205HP maximum power, matched with a professional ISUZU MLD 6 Forward manual transmission, ensuring smooth gear shifting, strong climbing power and low fuel consumption.
The wheelbase is optimized for both stable heavy-load driving and flexible urban operation. The standard configuration includes original factory air conditioning, ABS anti-lock braking system, exhaust brake and hydraulic power steering, greatly improving driving safety and comfort.
Both left-hand drive (LHD) and right-hand drive (RHD) versions are available to meet different national road standards worldwide.
The truck is fitted with 295/80R22.5 heavy-duty radial tires to adapt to complex road conditions.

Premium ISUZU GIGA Chassis: Mature and reliable heavy-duty chassis, low failure rate, strong power and durable performance, convenient global spare parts supply.
Full Food-grade Stainless Tank: Safe for potable water storage and transportation, easy to clean and disinfect, no water quality deterioration.
Large Loading Capacity: 10–12CBM super large tank volume, improving single operation efficiency and reducing transportation times.
Multi-scenario Application: Suitable for drinking water delivery, municipal road cleaning, dust reduction, garden irrigation, drought relief and construction water supply.
Full Customization Support: Support driving mode, tank capacity, vehicle color, logo spraying and additional functional configuration customization.
Complete Export Certifications: Equipped with ISO, CE and other export qualifications, meeting the entry standards of Africa, Southeast Asia, Middle East and Latin American markets.

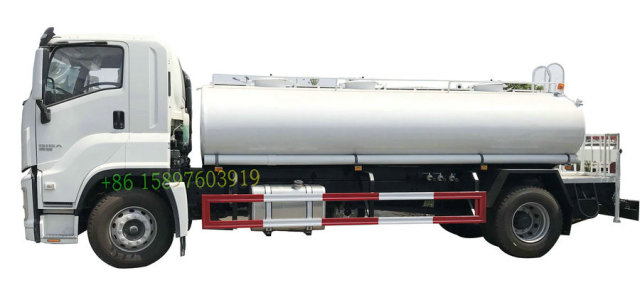

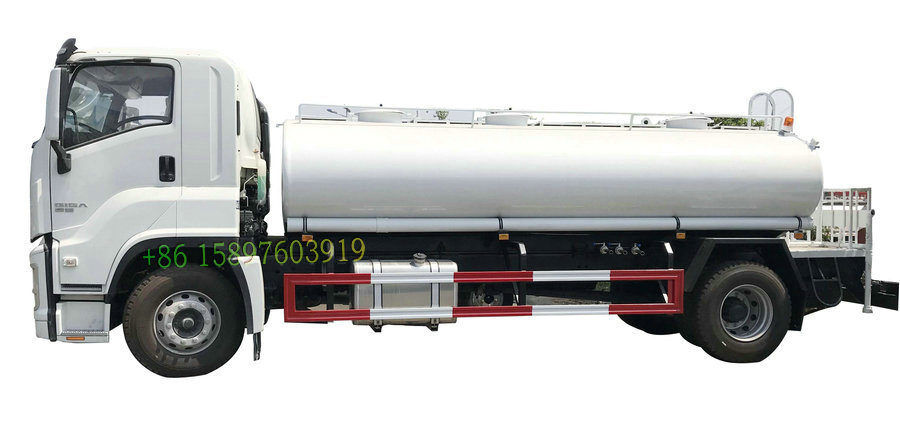

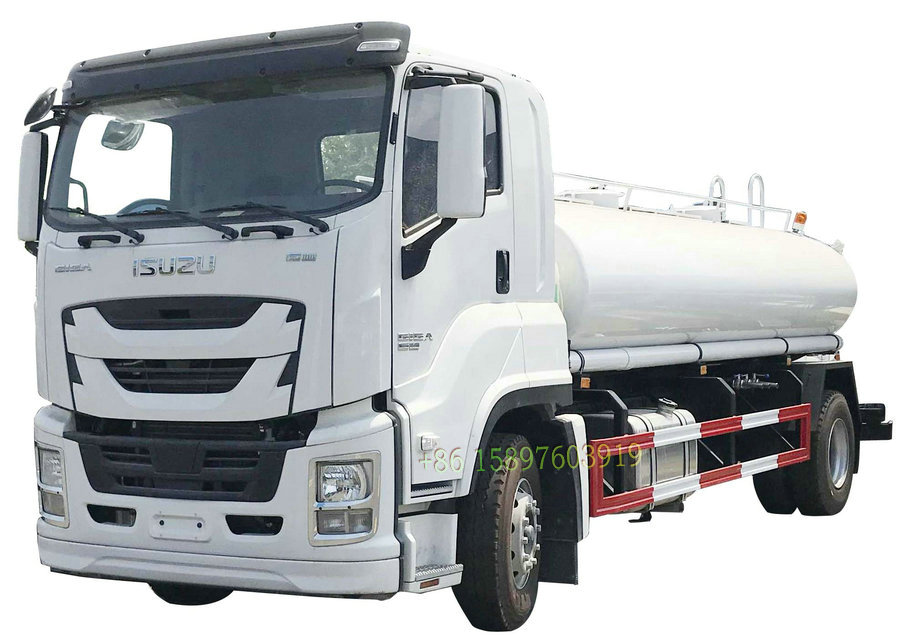

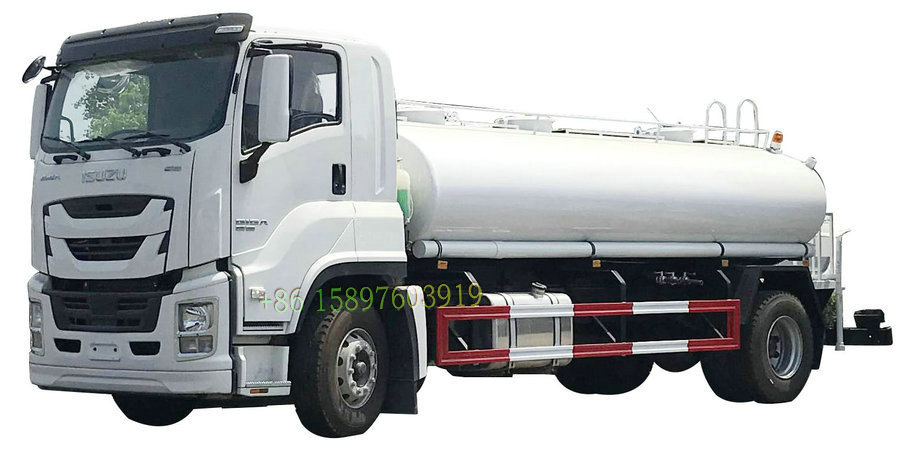

The Actual Pictures of ISUZU GIGA 4X2 FTR Stainless Steel Potable Water Truck 10-12CBM:

. Hygiene & Safety (Core Advantage for Drinking Water)

Food-grade SUS304 stainless steel tank, non-toxic, tasteless, no chemical reaction with drinking water.
Smooth polished inner wall, easy to clean, no rust, no sediment buildup, effectively avoid secondary water pollution, fully compliant with potable water transport standards.
Resists acid and alkali, won’t release harmful substances under high tropical temperatures in Southeast Asia.

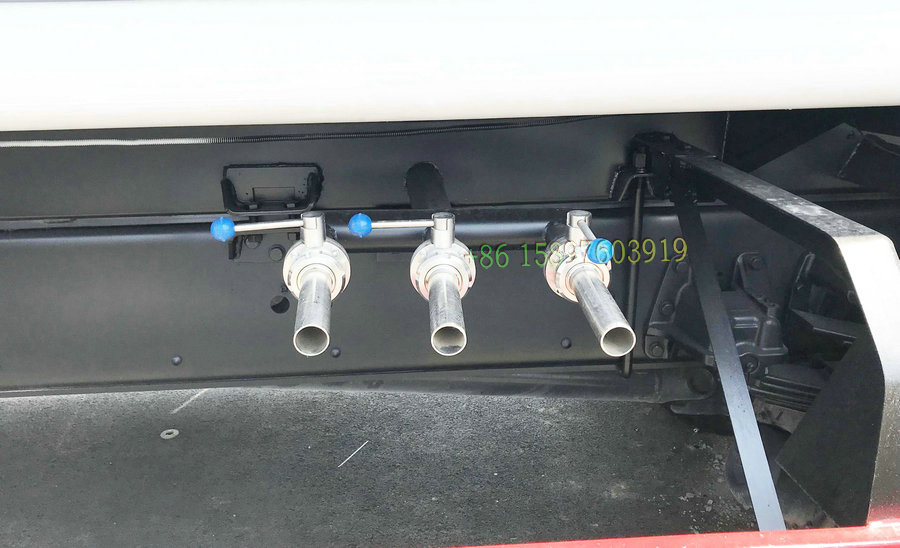

Stainless steel Water Pump Weilong Brand	Stainless steel water tank	anti wave inside of tank body

The truck is equipped with a high-performance self-priming stainless steel centrifugal pump, featuring fast water absorption, strong suction power and stable water output.

It supports self-priming water intake and rapid water discharge. The multi-functional sprinkling system integrates multiple working modes: front flush for road surface cleaning, side sprinklers for green belt irrigation, rear spray bar for large-area dust suppression, and adjustable high-pressure water cannon with long spraying range for tree watering, street cooling and emergency fire auxiliary rescue. Optional hose reel is available for remote water delivery, realizing one vehicle with multiple functions.

Urban municipal sanitation cleaning, road dust suppression, urban greening irrigation, remote village drinking water transportation, island and construction camp water supply, drought emergency water rescue, construction site water supply and daily fire auxiliary water supply.

More Drinking Water Tank Truck for your choice at our factory!

Those stainless steel water tanker adopts food-grade SUS304 tank material, featuring sanitary performance, rust & corrosion resistance, long service lifespan and easy cleaning. Built-in anti-wave plates ensure safe driving. With optional heat preservation function, it is ideal for safe drinking water transportation in tropical areas.

Brand New Original ISUZU GIGA 4X2 FTR good performance:

ISUZU GIGA 4X2 FTR Total weight: 16-18 tons

ISUZU GIGA 4X2 FTR medium truck's main technical and economic characteristics

The world's leading Isuzu 4H engine
Adopting the Japanese Denso electronic control high-pressure common rail system, this system can generate stable high fuel injection pressure at both low and high engine speeds, with better fuel atomization effect, more complete combustion, better power performance, lower emissions, smoother operation, and lower noise.
cockpit
The cab adopts high-strength galvanized steel plate and enclosed structure, forming an effective collision protection zone to protect the safety of drivers and passengers.
Isuzu's high-quality chassis is suitable for various modifications
Rich engine power specifications, wheelbase series, and load capacity combinations of more than 10 modified vehicle chassis can meet various installation modification needs;
frame Of ISUZU FTR GIGA 4X2 Chassis
High load-bearing capacity frame: Adopting 258 × 80 × 10 specifications, the overall U-shaped structure can meet both heavy load requirements and various modification needs.
axle
Front axle: The integral end fist shaped F063 front axle is produced using world advanced forging equipment and technology, with strong load-bearing capacity, a maximum load capacity of 6.3 tons, and stable and reliable quality.
Rear axle: The RT210 rear axle is produced using the world's advanced stamping, welding, machining, and assembly production lines and processes, with a load-bearing capacity of 21 tons, which can meet the heavy load requirements of users.
handling
Steering controllability: Equipped with hydraulic power steering device and scientifically designed steering trapezoid, making steering operation easy. The steering wheel angle and height can be adjusted, making it easy for drivers of all shapes to operate; Accelerator pedal control: lightweight, effortless, and easy to operate; Shift control: lightweight, effortless, and clear gear positions.

	Cabin: Lightweight and labor-saving operation with strong safety. The steering wheel angle and height can be adjusted, and the accelerator pedal is lightweight, labor-saving, and easy to control. Shifting is also lightweight, labor-saving, and the gear is clear, ensuring safety. In terms of braking, an ABS system has been added
Isuzu 4H engine Displacement: 5.2L Maximum torque: 650N · m Better fuel atomization effect, more complete combustion, smoother operation, lower noise Strong power, low fuel consumption, reliable and durable Suitable for Chinese usage environment
	High quality chassis High load capacity chassis The frame is specially treated with electrophoresis in humid, severe cold, and saline alkali climates, which can adapt to various harsh weather conditions. The lightweight design is an advanced design standard, and the weight is about 1 ton lighter than similar models


Blue Color	Red color	White Color

Q1: What material is the water tank made of? Is it safe for drinking water?

A: The tank is made of food-grade SUS304 stainless steel. It is non-toxic, odorless, harmless to human body, will not react chemically with drinking water, fully meets food transportation sanitary standards for potable water delivery.

Q2: Why choose SUS304 instead of carbon steel or other stainless steel?

SUS304 has superior rust and corrosion resistance, suitable for the humid coastal climate of the Philippines; carbon steel is easy to rust and pollute water.
Smooth inner wall prevents dirt and algae from sticking, easy to clean regularly.
Balanced cost and performance, durable and cost-effective for long-term fleet use.

Tank Structure & Performance

Q3: Will the tank leak or deform during driving?

A: The tank body adopts fully automatic welding technology, with reinforced beam structure. Inside is equipped with multi-layer anti-wave baffles to reduce water impact during acceleration, braking and turning. The whole tank is pressure tested before delivery to ensure no leakage and stable structure.

Q4: Can the tank keep water fresh in hot tropical weather?

A: We provide optional polyurethane insulation layer. It insulates against high outdoor temperature, slows water temperature rise, effectively avoids water deterioration under long-time sunlight exposure, very suitable for Southeast Asian hot weather.

Q5: What is the standard thickness of the stainless steel tank plate?

A: Common thickness: inner plate 3mm, outer plate 2.5mm. Thicker customized plates are available for heavy-duty rough road conditions upon request.

Chassis & Configuration (Isuzu 4-ton model focused)

Q6: Which chassis do you match for the 4-ton drinking water truck?

A: Standard chassis is Isuzu ELF 100P left-hand drive chassis, which is highly popular in the Philippines. Local spare parts and after-sales service are complete, easy maintenance for local customers. Other chassis like JMC, Foton can also be customized.

Q7: What water pump do you equip? How fast is loading and unloading water?

A: Standard stainless steel self-priming pump. It supports fast suction and discharge, with quick coupling food-grade hoses. One tank of water can be fully filled or discharged in a short time, greatly improving delivery efficiency.

Usage & Maintenance

Q8: Is it difficult to clean and disinfect the SUS304 tank?

A: Very easy. The smooth polished inner wall hardly leaves residue. You can flush with clean water or dilute disinfectant regularly through the top manhole. No rust-proof paint maintenance required like iron tanks, saving daily maintenance cost.

Q9: What is the service life of the stainless steel tank?

A: With regular cleaning and proper use, the tank service life can reach 8–12 years, far longer than ordinary carbon steel tanks.

Compliance & Application

Q10: Can this vehicle pass Philippine local road registration and inspection?

A: Yes. The whole vehicle complies with Philippine vehicle size and load limit standards. We provide complete export documents (factory certificate, material report, inspection record) for easy local customs clearance and registration.

Q11: What are the main application scenarios?

A: Urban residential drinking water distribution, bottled water factory transportation, construction site water supply, remote village water delivery, emergency disaster relief water supply. Perfect for local water company fleets and logistics operators in the Philippines.

Customization & After-sales

Q12: Can I customize the tank volume, color and additional functions?

A: Yes. Tank capacity, exterior color, manhole position, pump flow rate, insulation layer, hose length can all be customized according to your demand.

Q13: What is your after-sales policy for overseas customers?

A: Core chassis enjoys original Isuzu global warranty. We supply free vulnerable spare parts together with shipment, provide online technical guidance all the time, and support cooperation with local Philippine maintenance agencies for long-term after service.

We have 20 years of experience in exporting specialized vehicles and can provide customized export services according to user requirements.

Export Document:
SGS, GCC,CCC

Specialized export transportation method:
---- Reasonably select transportation mode based on the size of the vehicle and the characteristics of the destination port
Container, Bulk Shippment, flat rack
---- Safe, efficient, and fast
