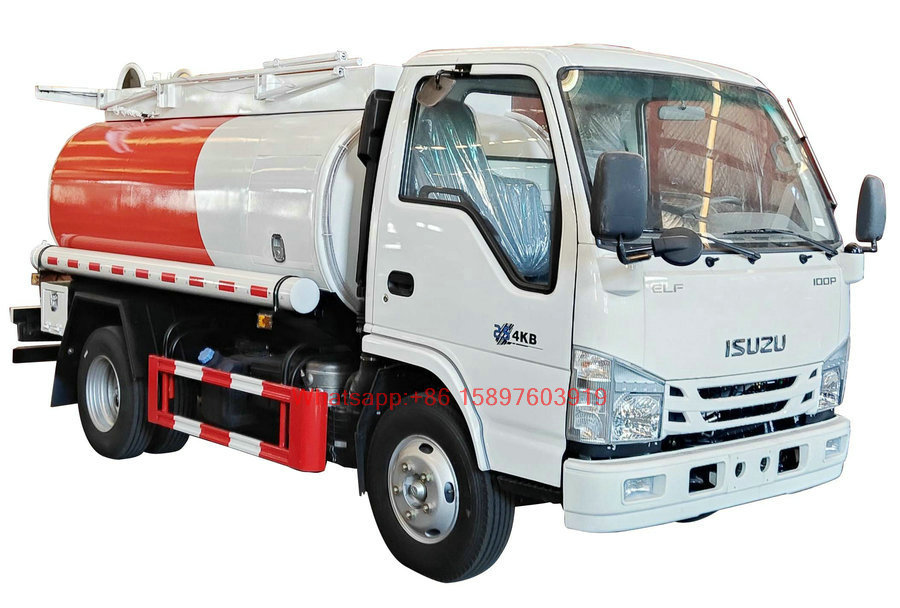

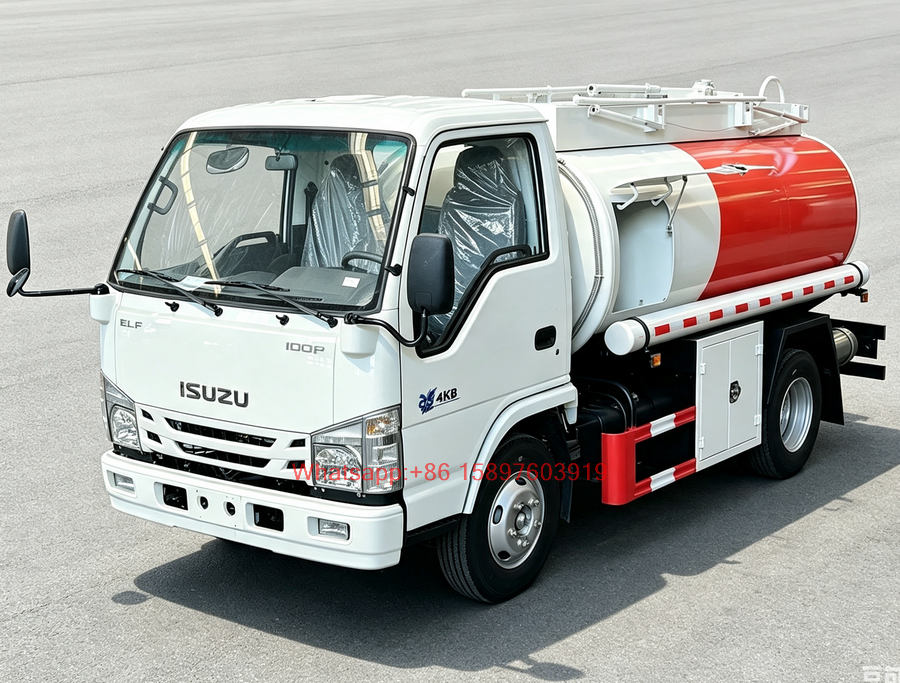

Small ISUZU 100P 5000L Fuel Refueling Truck

Name: Small ISUZU 100P 5000L Fuel Refueling Truck
Brand: HUBEI RUNLI SPECIAL AUTOMOBILE CO.,LTD

The ISUZU ELF 100P 5000-liter fuel refueling truck is a light-duty mobile fuel supply vehicle built on genuine ISUZU chassis. Equipped with reliable 120HP Euro 3/ Euro 4/Euro 5/Euro6 diesel engine, it features stable power and low failure rate. The 5 cubic meter tank is widely used to supply diesel for mining machinery, construction equipment, agricultural fleets and off-site projects. Customers can choose simple oil transfer configuration or install metered fuel dispensers for quantitative refueling. We support LHD/RHD chassis and aluminum tank customization for global markets including Africa, Southeast Asia, Central America.

Inquiry

Add to Quote List View Quote List

Description

Small ISUZU 100P 5000L Fuel Refueling Truck

Genuine ISUZU 4KH1 Engine
120HP Euro6 power unit, low fuel consumption, ultra-low breakdown rate. Spare parts widely available worldwide, easy maintenance in Africa, Southeast Asia.
Compact size & excellent mobility
Overall length less than 6 meters, small turning radius. Perfect for narrow construction sites, mining areas, plantations and rural roads where large tank trucks cannot pass.
5CBM golden capacity
Balanced loading capacity. Ideal fuel supply for medium & small fleets, construction machinery and agricultural equipment.
Multiple tank options
Cost-effective carbon steel tank; lightweight anti-corrosion aluminum alloy tank for coastal & humid regions. Single compartment or divided multi-compartment available.
Two operation versions optional
Basic transfer pump model for simple oil delivery; upgraded version with digital fuel dispenser for accurate metered refueling.
Complete safety equipment
Equipped with aluminum alloy manhole, emergency bottom valve, static grounding strap, flame arrester, fully meets international safety standards for liquid fuel transport.
LHD & RHD available
Suitable for countries with left-hand or right-hand traffic regulations.
Lower investment & running cost
Compared with larger ISUZU 600P / 700P fuel trucks, it requires less initial investment, cheaper daily fuel and maintenance costs, best choice for small and medium contractors.

More ISUZU 600P Potable Water Delivery Truck For Sale,ISUZU ISUZU Cargo Truck, ISUZU Tanker Truck, ISUZU Van Truck, ISUZU Refrigerator Truck, ISUZU Garbage Truck and Other ISUZU Special Trucks, Please contact With Pinky, Whatsapp +86 15897603919

The Detail Specification of Small ISUZU 100P 5000L Fuel Refueling Truck :

ISUZU 100P Euro 6 5000L Fuel Refueling Truck Specification

1. Chassis

Chassis Model: ISUZU QL1070BUHAY
Drive: 4×2, LHD / RHD optional
Engine: 4KH1CN6LB, 120HP(88kW), 2999cc, Euro6 / China 6
Gearbox: MSB-5SM 5-speed manual
Wheelbase: 3360 mm
Tyre: 7.00R16 steel radial tire, 6+1 spare
Cabin: Single row, 3 seats, factory A/C, power steering, ABS
GVW: 7300 kg
Overall Dimension: 5990 × 2000 × 2450 mm

2. Superstructure Tank

Effective Volume: 5000L (5CBM)
Material: 5mm Q235 carbon steel; Aluminum alloy optional
Internal anti-surge baffles, full anti-corrosion coating
1 compartment; multi-compartment optional
Aluminum alloy Euro standard manhole with breathing valve & overflow prevention
Emergency bottom valve (safety cut-off valve)

3. Oil Transfer System

Model 60YHCB-30 arc gear pump, flow rate: 30m³/h
PTO power take-off, realize self-priming, discharging & circulating
Full set pipelines, ball valves, quick couplings
Hose storage box, static grounding strap, fire extinguisher, anti-spark exhaust cover

4. Optional Upgrade Items

Digital fuel dispenser + 15m hose reel & fuel nozzle
Aluminum alloy tank body (light weight, anti-corrosion for coastal market)
Tank divided into 2 compartments for two kinds of oil
Double pump & double dispenser
Explosion-proof lighting, stainless pipeline
Custom color, customer logo painting

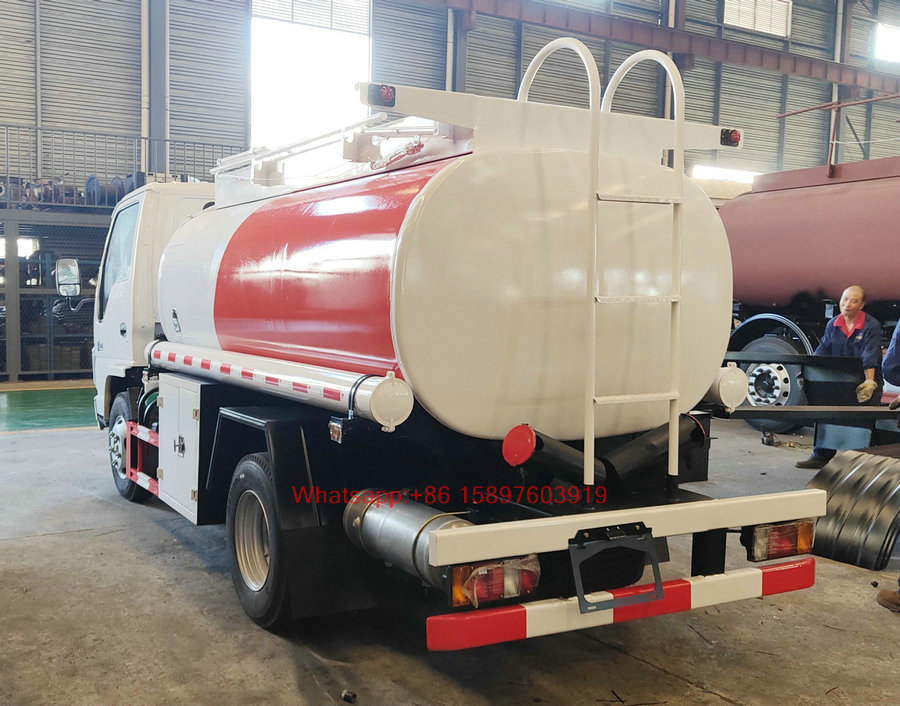

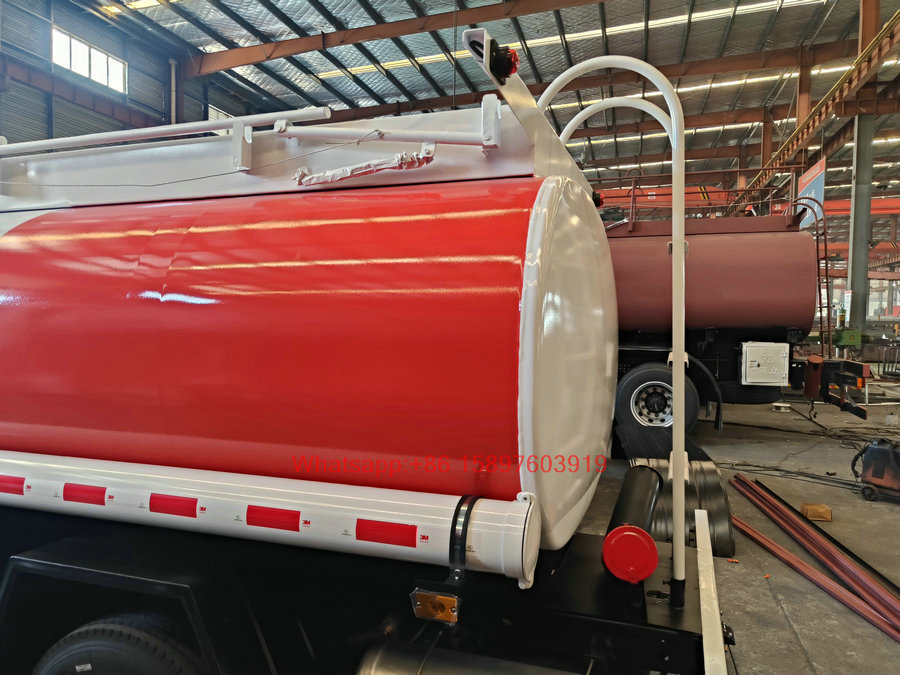

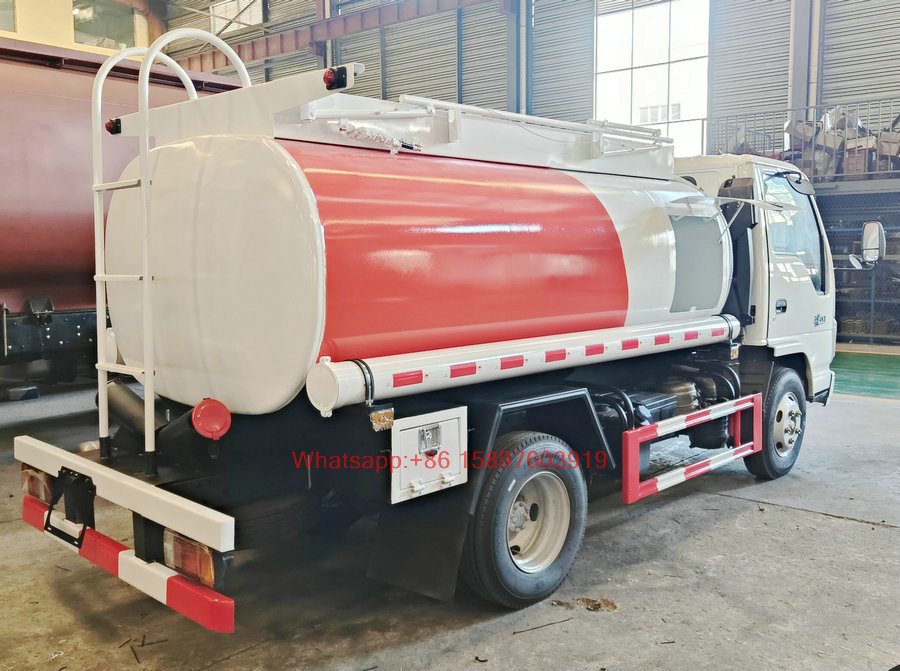

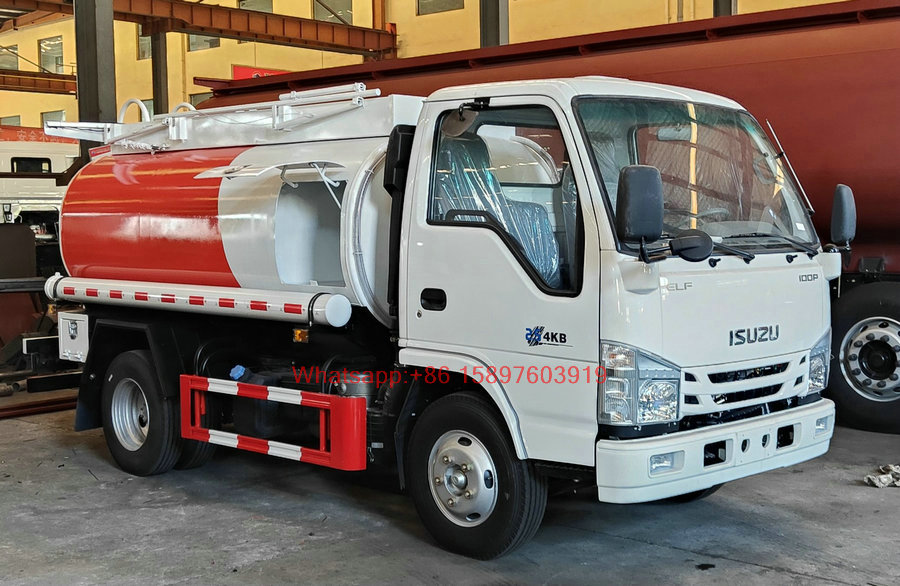

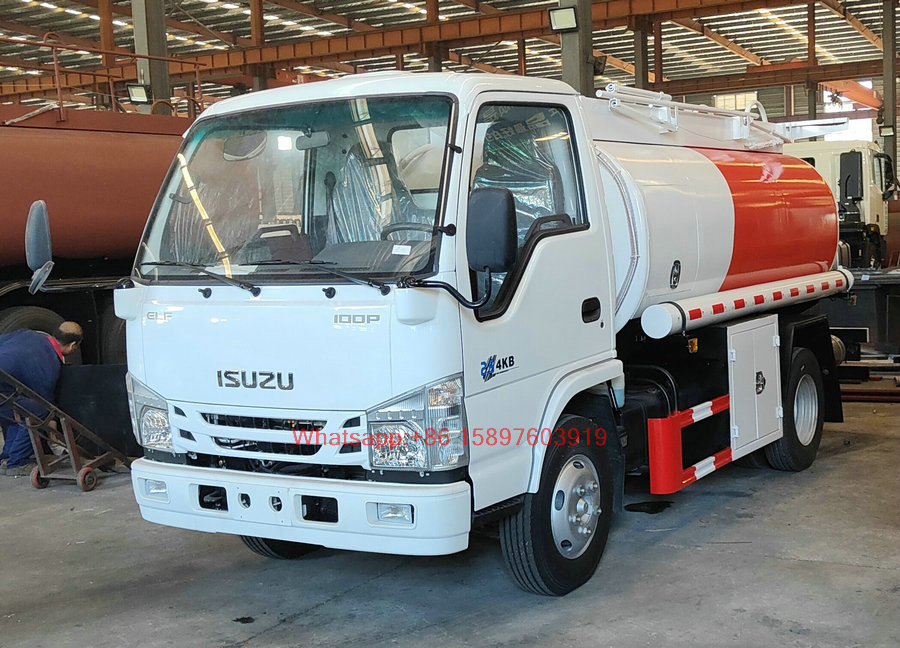

The Actual Pictures of ISUZU 100P 5000L Fuel Refueling Truck :

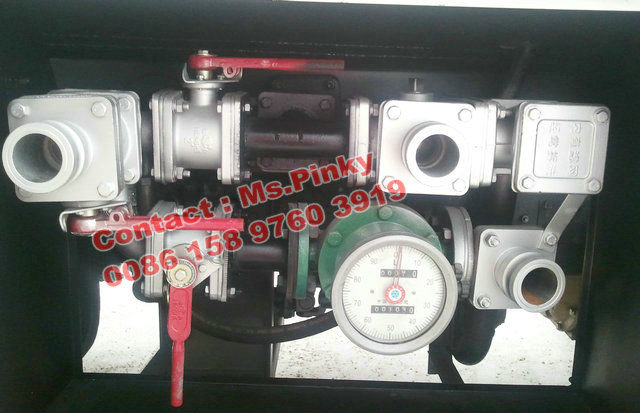

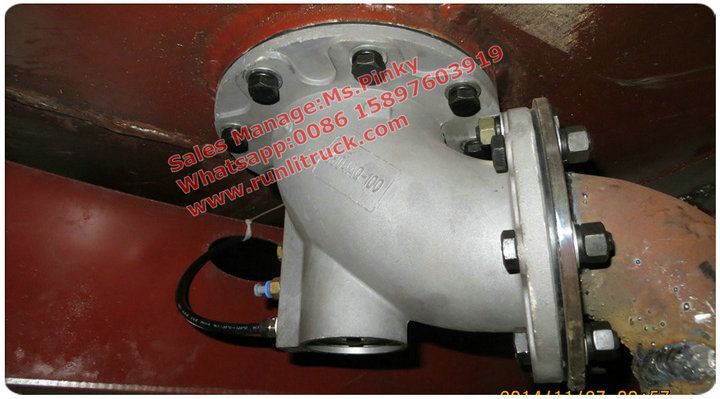

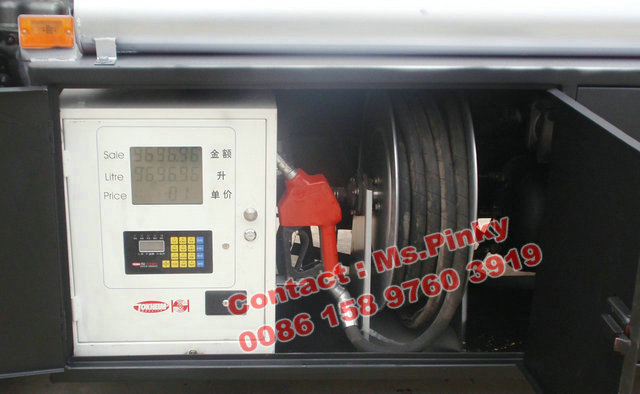

Flow meter for fuel tank truck	Pneumatic Bottom Valve	Computer refueling machine and hose reeling monitor

Brand New Original ISUZU 100P Chassis good performance:

more environmentally friendly
Qingling National VI products have achieved low emissions and fuel consumption throughout their entire lifecycle, with synchronized improvement in overall vehicle performance, lower noise, less vibration, and quieter and more comfortable driving.
More economical (fuel-efficient, urea efficient)
Low fuel consumption, saving more than 10% -15% compared to domestic cars with the same load capacity;
High precision calibration of urea injection quantity reduces user usage costs and facilitates customer modification;
High reliability and low maintenance costs.
Stronger adaptability to oil products
Fully considering China's oil products and the usage conditions of users, the development of compatibility has improved the adaptability to oil products, making Qingling National VI products eat "coarse grains".
Higher cost-effectiveness
In the situation where the price increase of similar National VI models in China is higher than that of National V models by more than 10% -20%, Qingling only slightly increases by 3-4%.

	Hard core quality is trustworthy 100P is built using advanced new technologies, materials, and processes, with significant leadership, reliability, and economy. It faces the market and consumers with a "hardcore" image of high efficiency, reliability, durability, comfort, environmental protection, and fuel efficiency, and is highly trusted by users.
	New 4K engine Continuing the advantages of high reliability, high economy, and high power of the Isuzu 4K series, while comprehensively upgrading its core performance, it can meet the usage needs of future blue label policies and high-end urban customers.
Brand new driver's cabin The large curvature rearview mirror provides a wide field of view. The front window glass and side window A-pillar blind spot are only 7 °. It adopts sedan style seats, soft steering wheel, refreshing and comfortable, and the driver will not feel tired during long-distance driving
	Lightweight chassis High technology, high-strength materials, and high-precision technology are used to strengthen the design of the front and rear axles, ensuring good stability and comfort. The lightweight chassis and frame beam can meet the cargo needs of users

FAQ for ISUZU 100P 5000L Fuel Refueling Truck

What fuel can this truck transport?Standard version for diesel. For gasoline transport, extra explosion-proof modification is required.
Can you supply right-hand drive (RHD) chassis?Yes, both LHD and RHD ISUZU 100P chassis are available for export.
Difference between carbon steel tank and aluminum alloy tank?Carbon steel: lower cost, mature technology.Aluminum alloy: lighter curb weight, better anti-corrosion, ideal for seaside, high humidity areas.
Is fuel dispenser included as standard?No. The dispenser system is optional. Two options: simple transfer pump version or metered refueling version.
What is the maximum pumping flow?Standard YHCB-30 pump, max flow 30 cubic meters per hour.
Warranty period?12 months factory warranty after shipment, excluding wearing parts.
Can we print our own logo on the tank?Custom painting, logo and color are acceptable.
Delivery time?20–25 working days after receiving deposit.

We have 20 years of experience in exporting specialized vehicles and can provide customized export services according to user requirements.

Export Document:
SGS, GCC,CCC

Specialized export transportation method:
---- Reasonably select transportation mode based on the size of the vehicle and the characteristics of the destination port
Container, Bulk Shippment, flat rack
---- Safe, efficient, and fast
